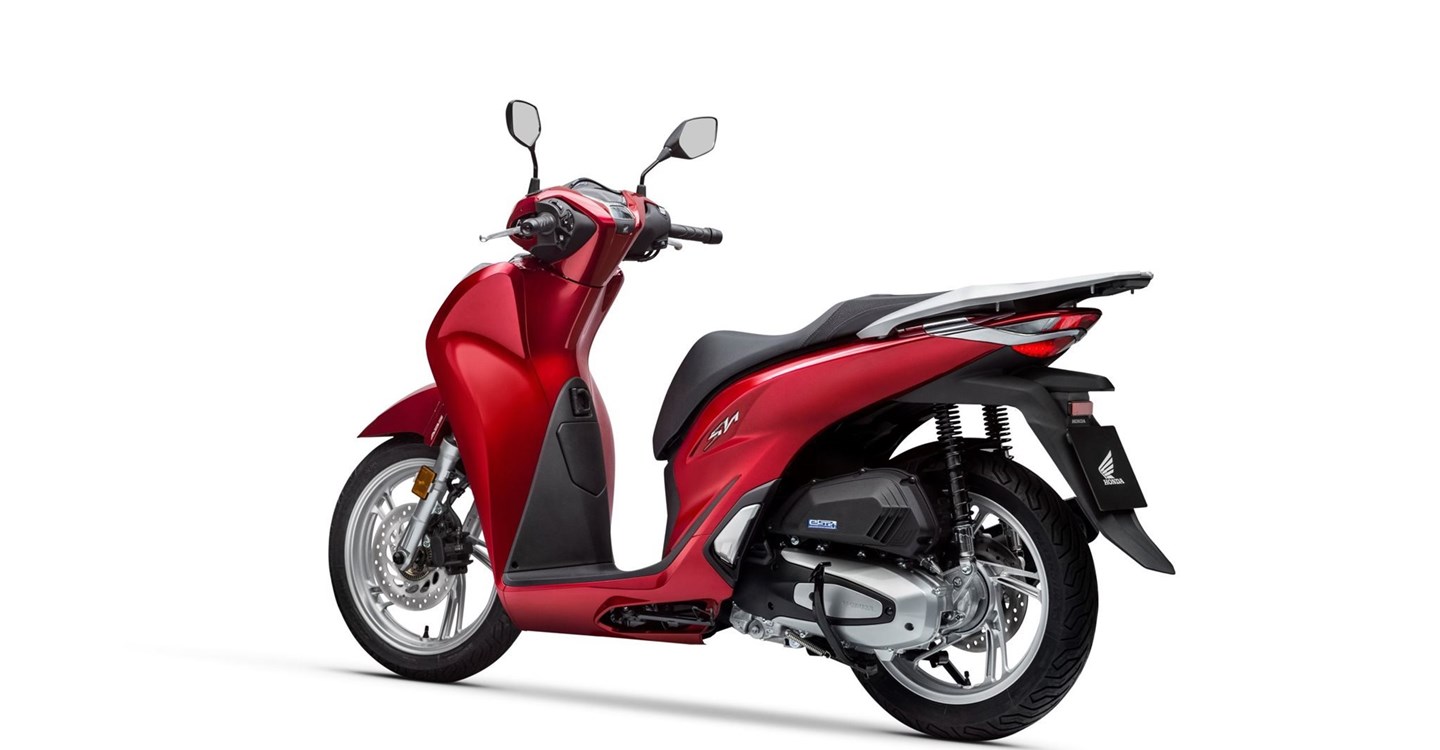

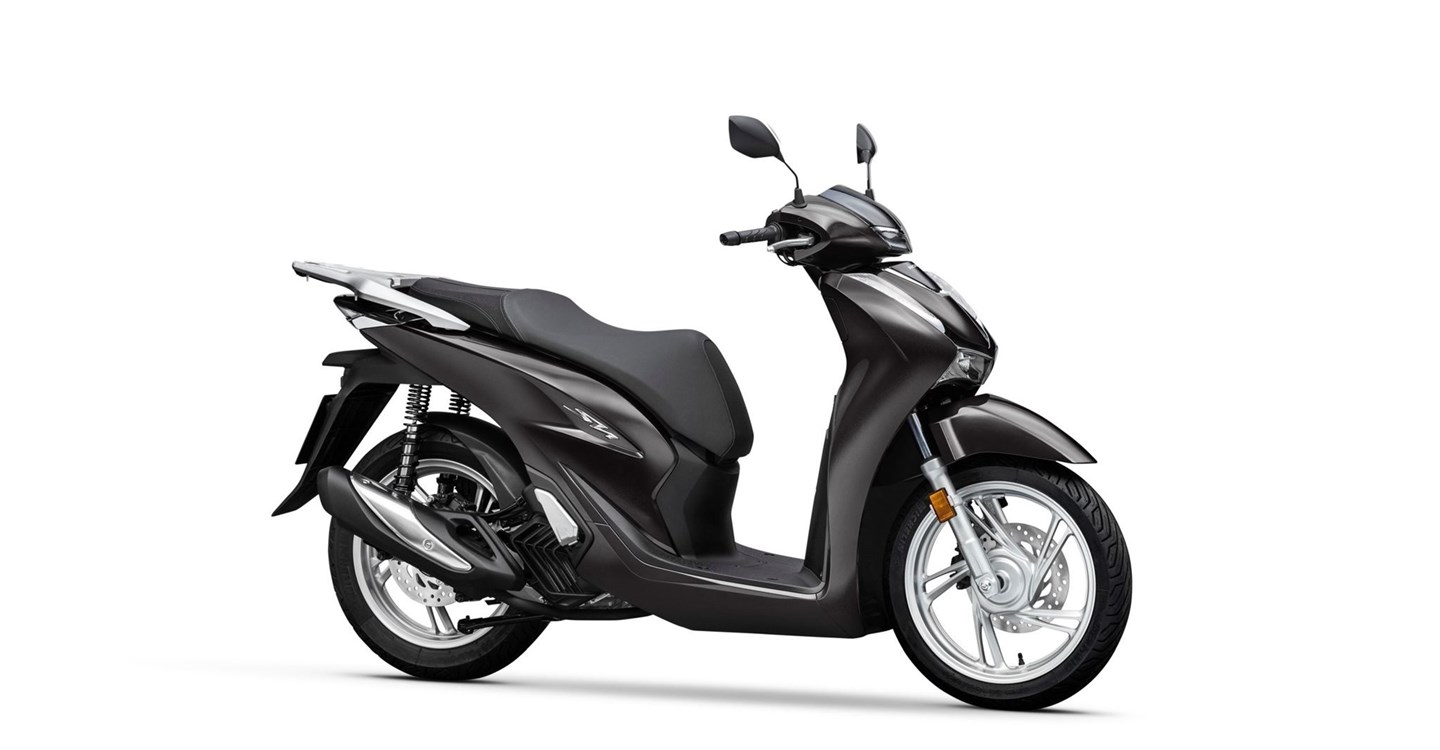

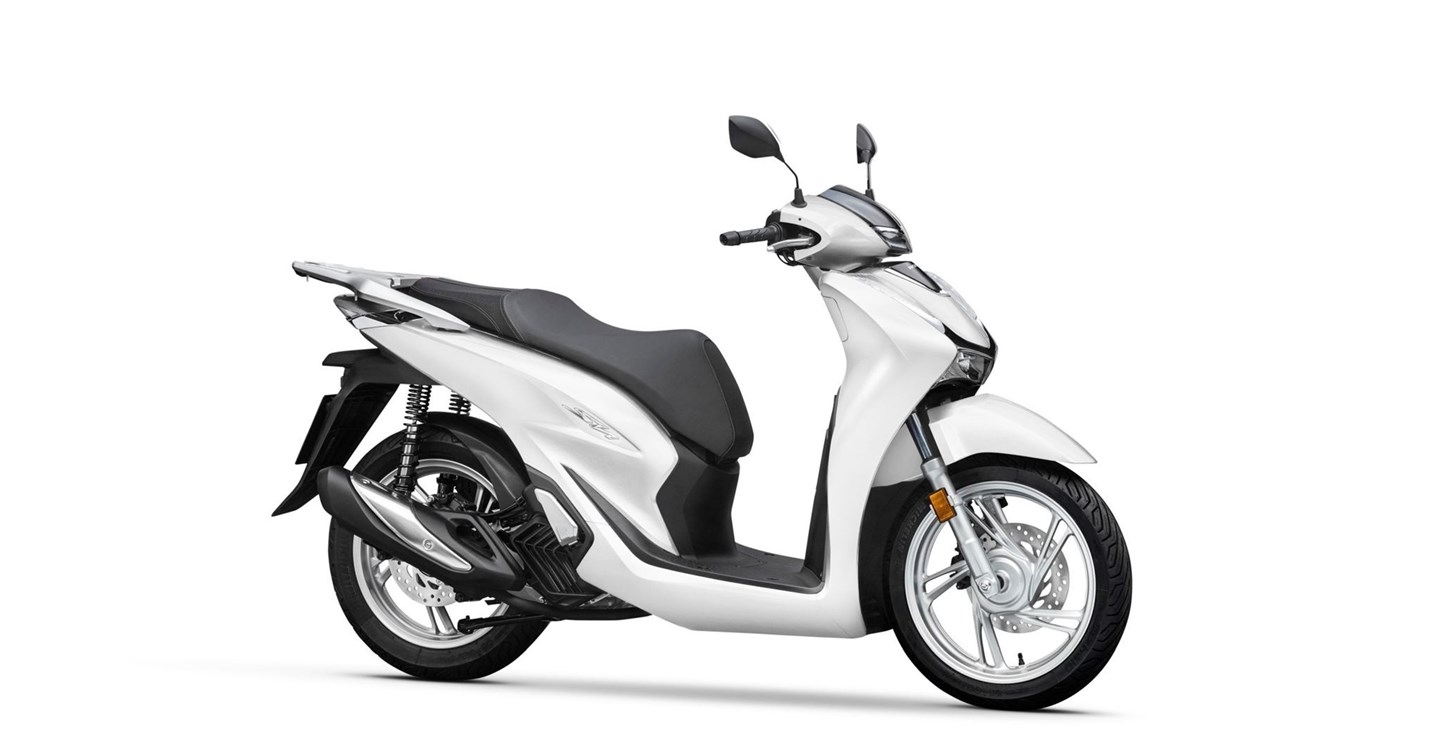

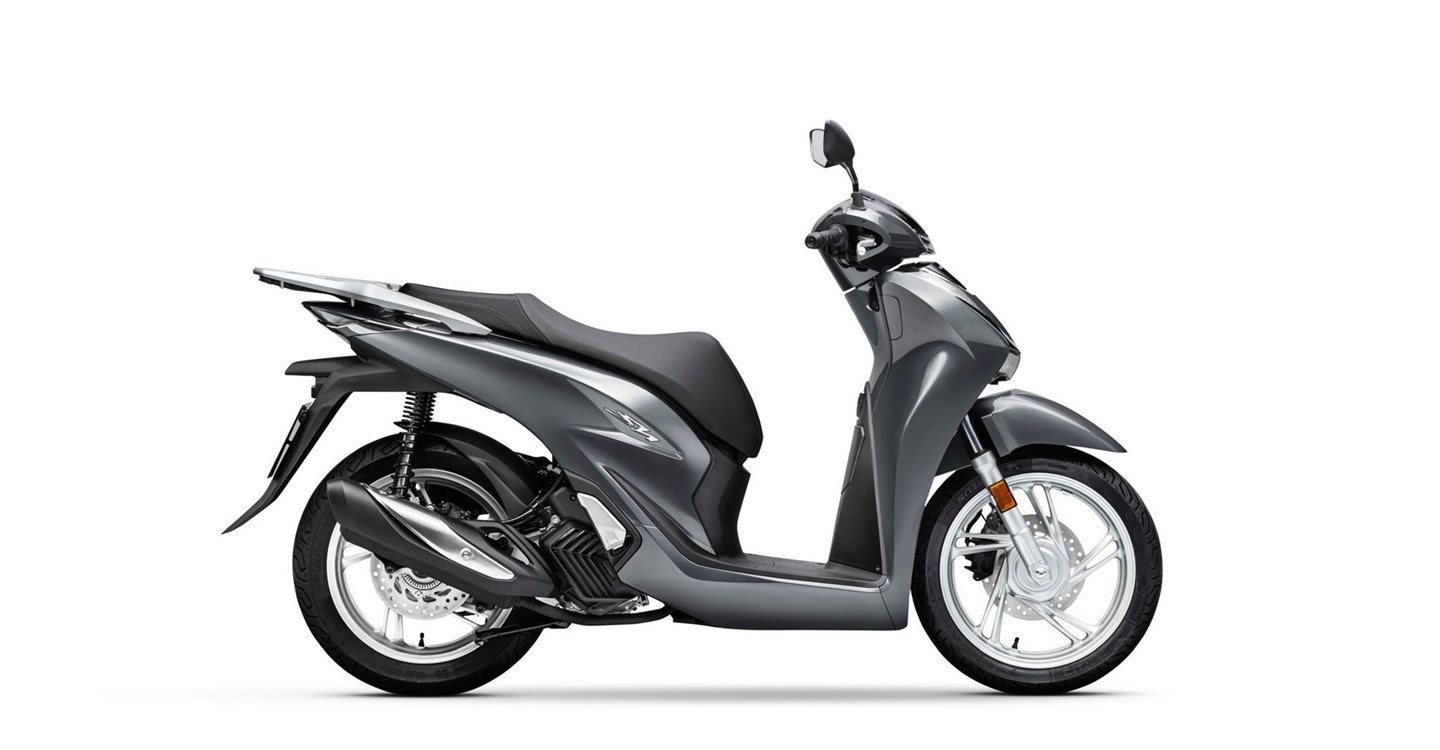

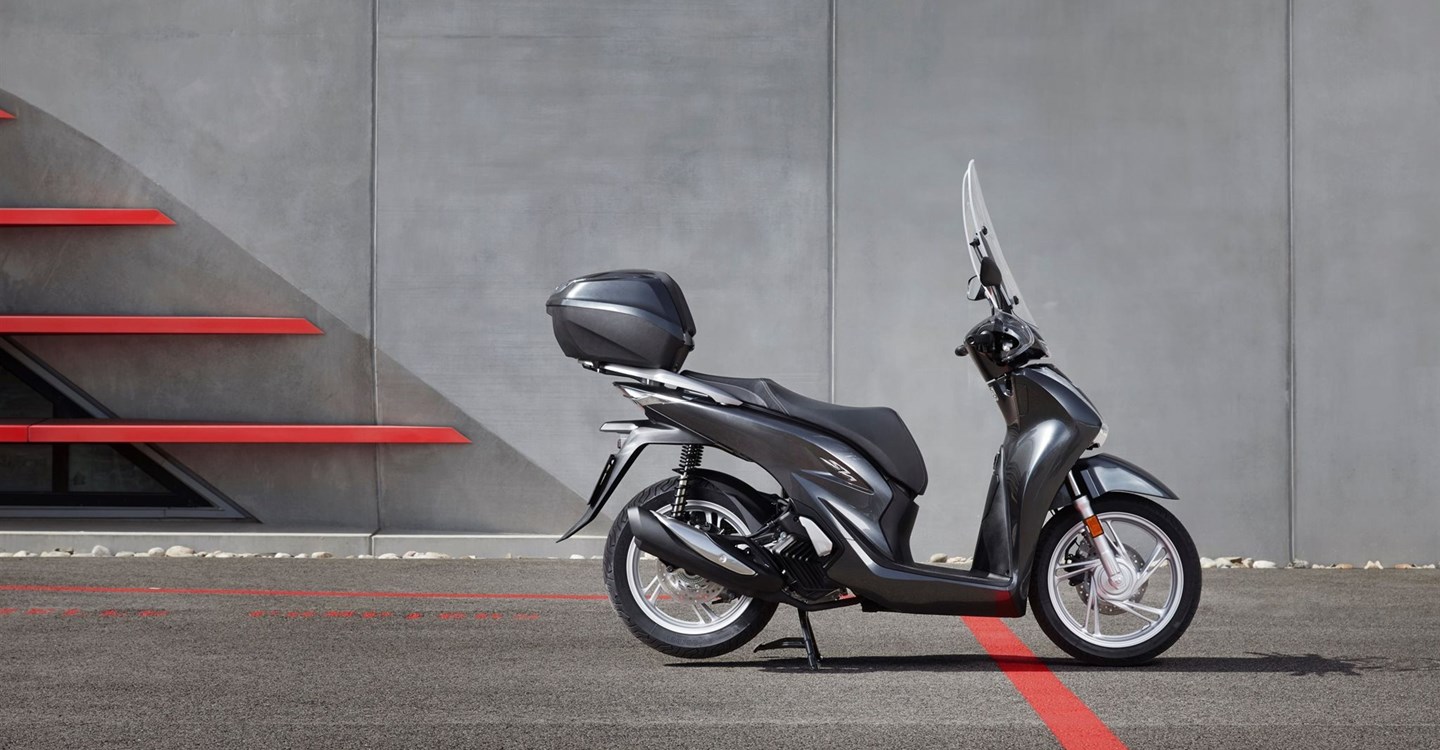

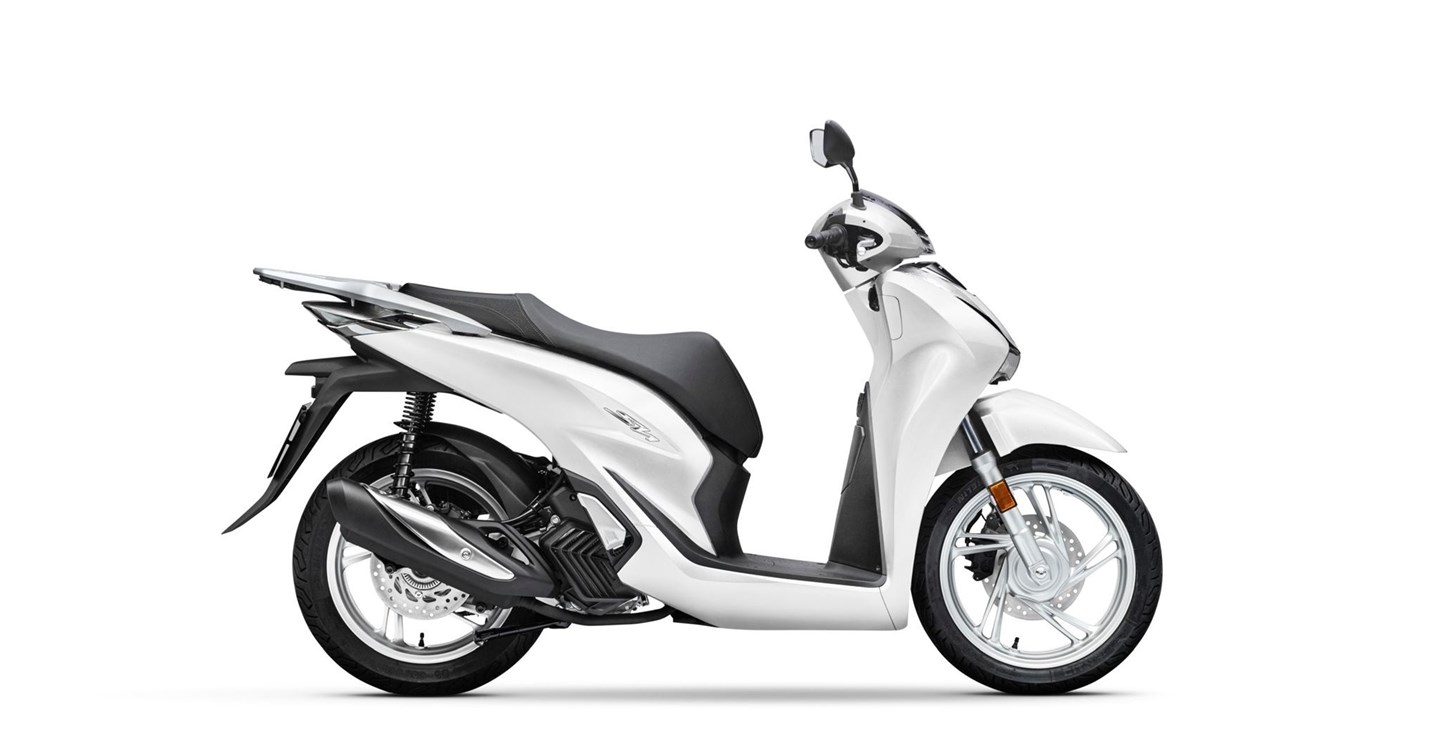

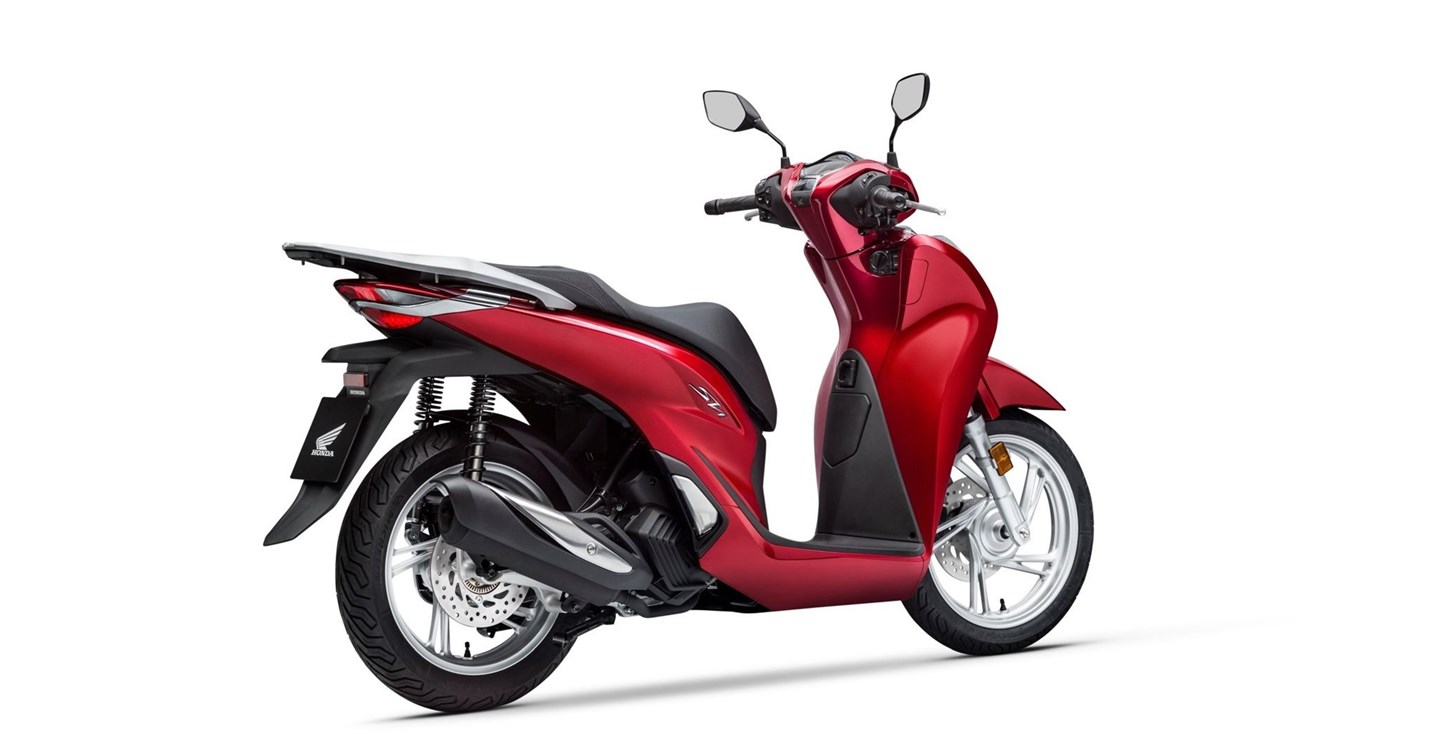

Honda SH150i

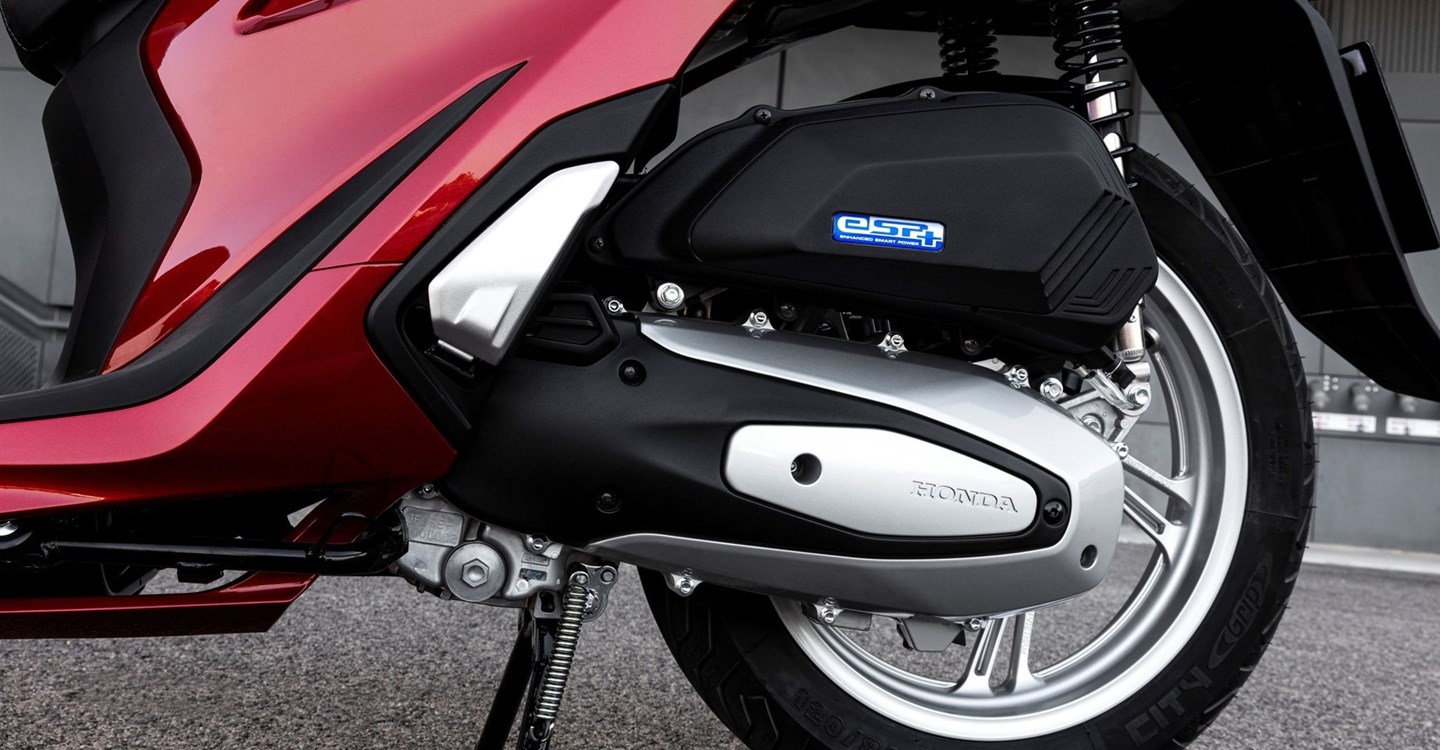

ENGINE AND DRIVE TRAIN
Cylinders
1
Strokes
4-Stroke
Cooling
liquid
Displacement
153 ccm
Bore
58 mm
Stroke
57.9 mm
Max. Power Output
15 HP
Rpm at Max. Power Output
8250 rpm
Max. Torque
13.9 Nm
Rpm at Max. Torque
6500 rpm
Compression Ratio
10.6
Fuel system
Injection
Starter
Electric
Clutch Type
Centrifugal force
Ignition
Digital, Transistor
Final Drive
Belt
Transmission Type
Variomatic
CHASSIS
Frame
Steel
Frame type
Double cradle
Steering axis angle
64 degree
Trail
85.2 mm
SUSPENSION FRONT
Front suspension
Telescopic fork
Diameter
33 mm
Travel
89 mm

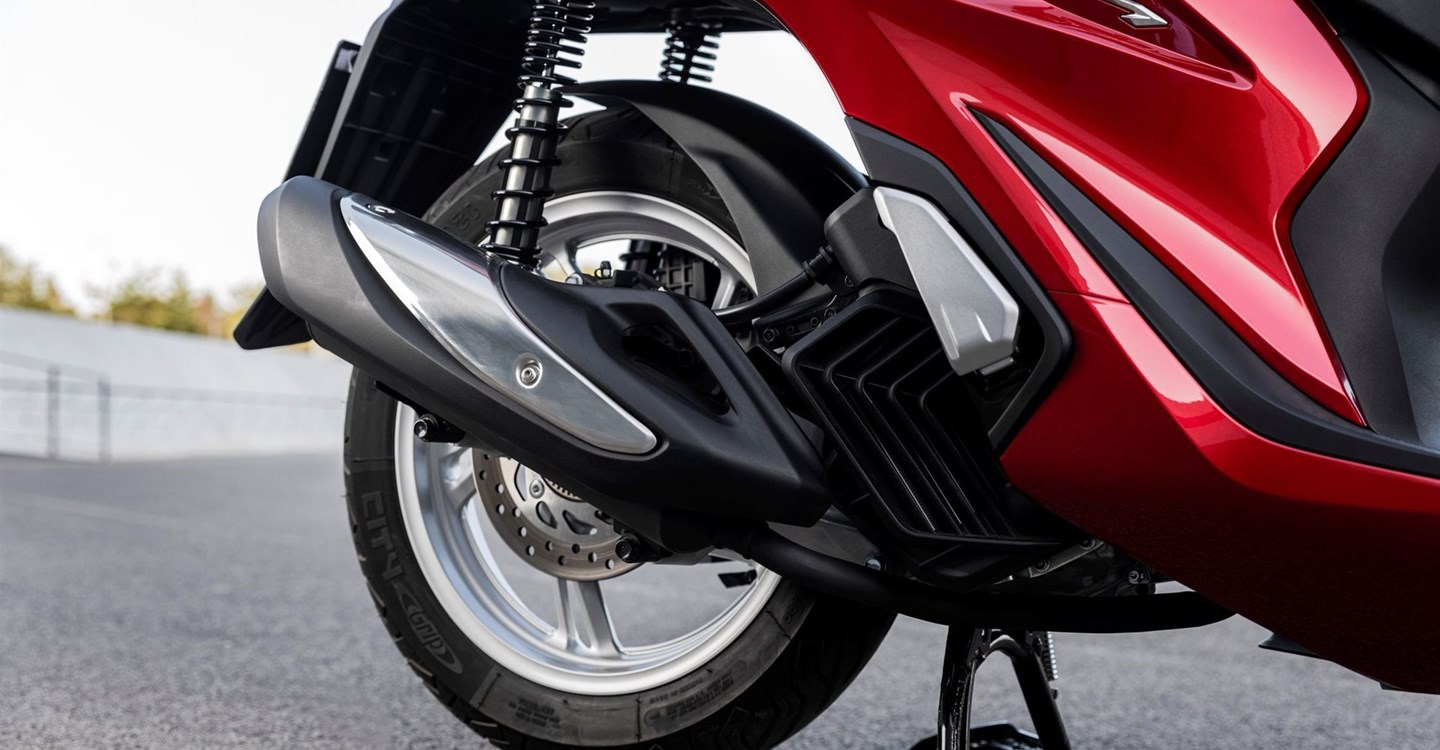

SUSPENSION REAR
Rear suspension
Unit Swing
Shock absorber
Dual Shock
Travel
83 mm
Adjustment
Preload

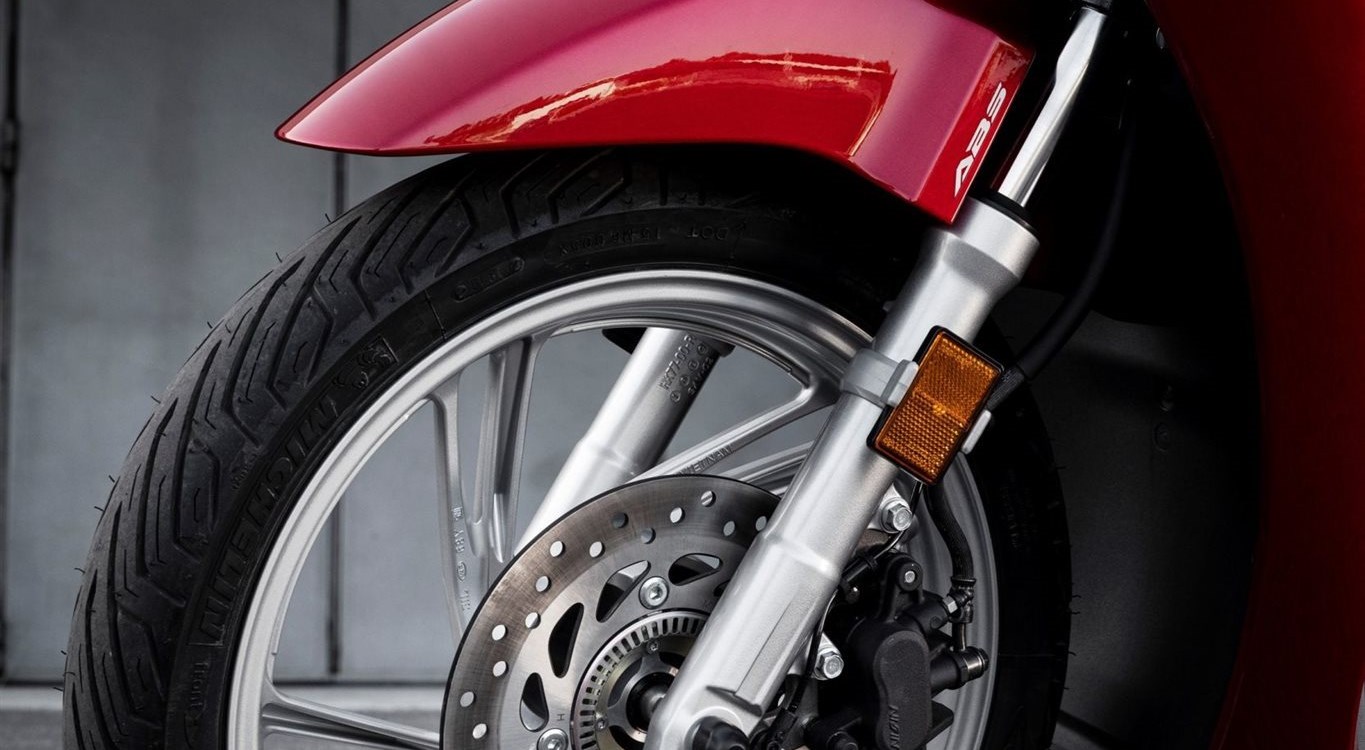

BRAKES FRONT
Front brake
Single disk
Piston
Double piston
BRAKES REAR
Rear brake
Disc
Piston
Single piston
ASSISTANCE SYSTEMS
Assistance systems
ABS
DIMENSIONS AND WEIGHTS
Front tyre width
100 mm
Front tyre height
80 %
Front tyre diameter
16 inch
Rear tyre width
120 mm
Rear tyre height
80 %
Rear tyre diameter
16 inch
Length
2034 mm
Width
740 mm
Height
1158 mm
Wheelbase
1340 mm
Seat Height from
799 mm
Kerb Weight (with ABS)
137.3 kg

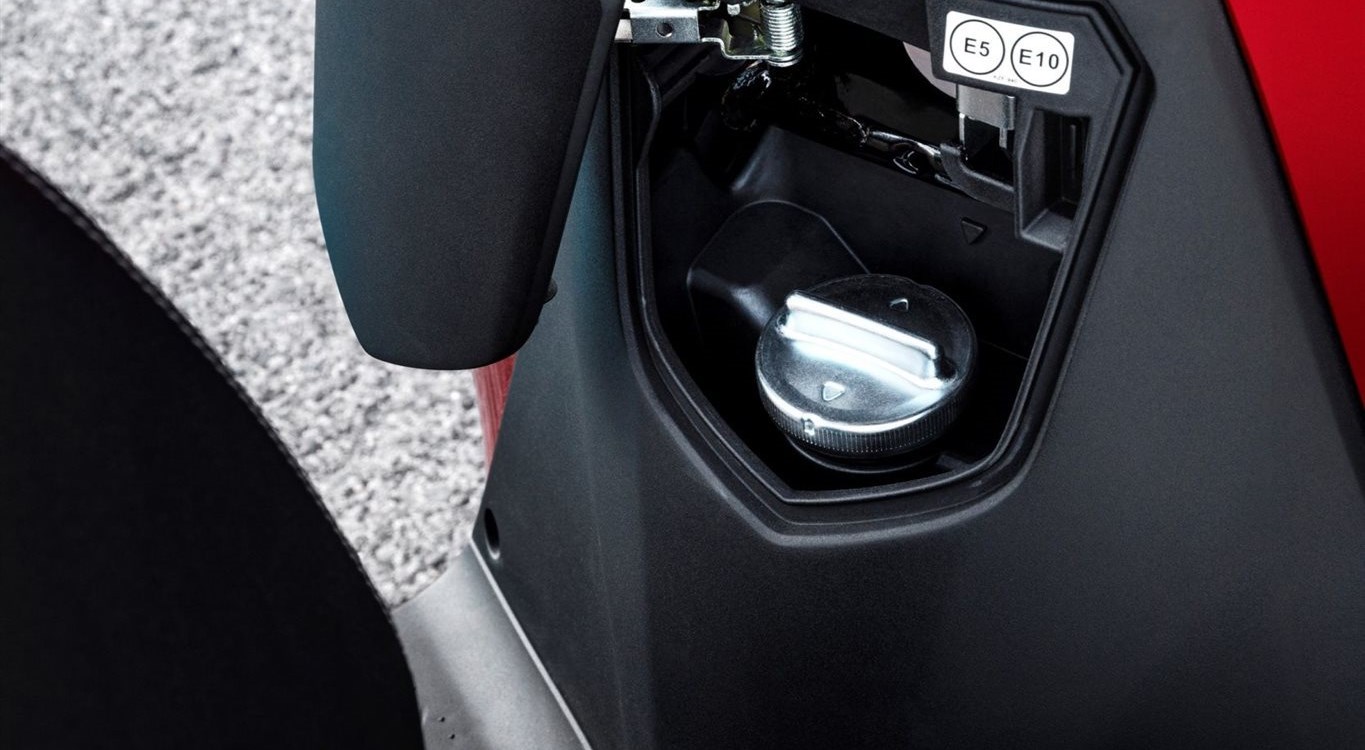

Fuel Tank Capacity
7.5 l
License
A2
EQUIPMENT
Equipment

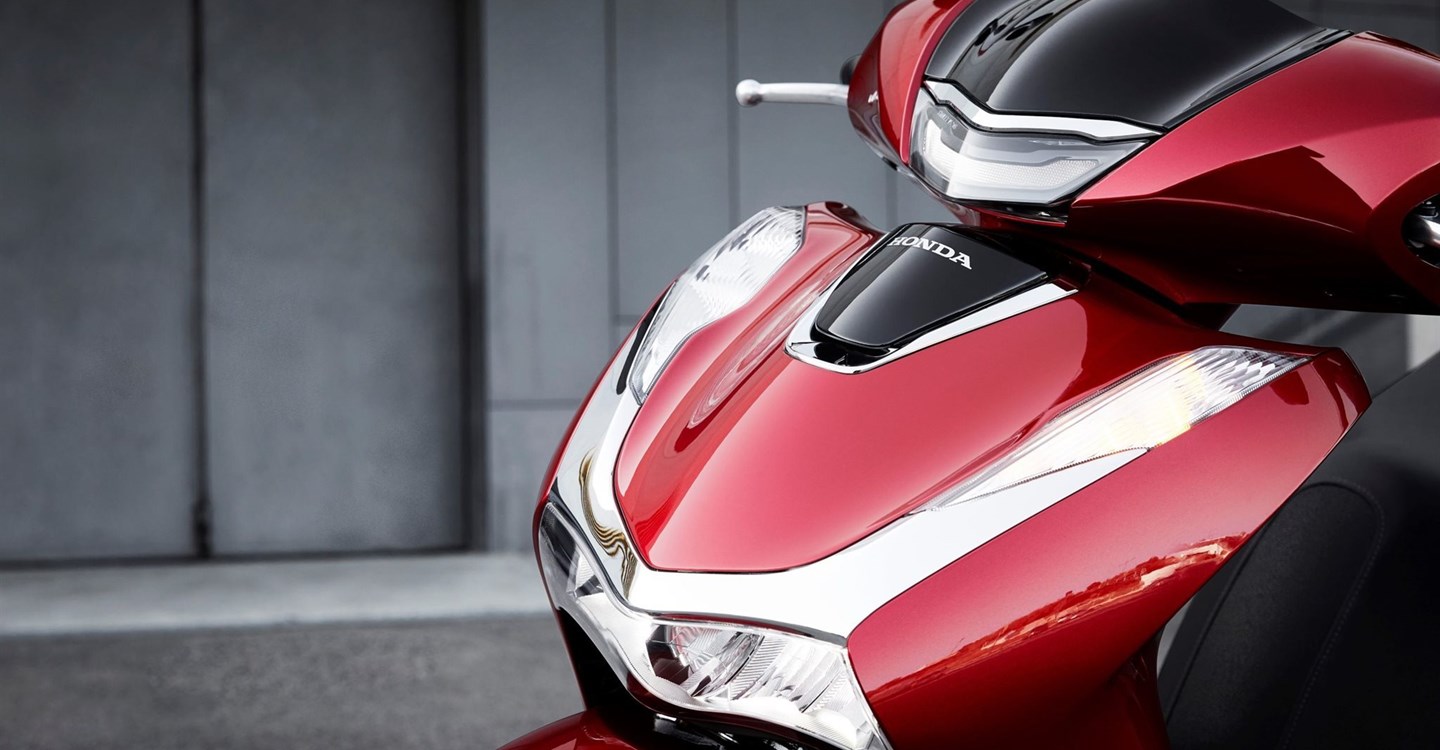

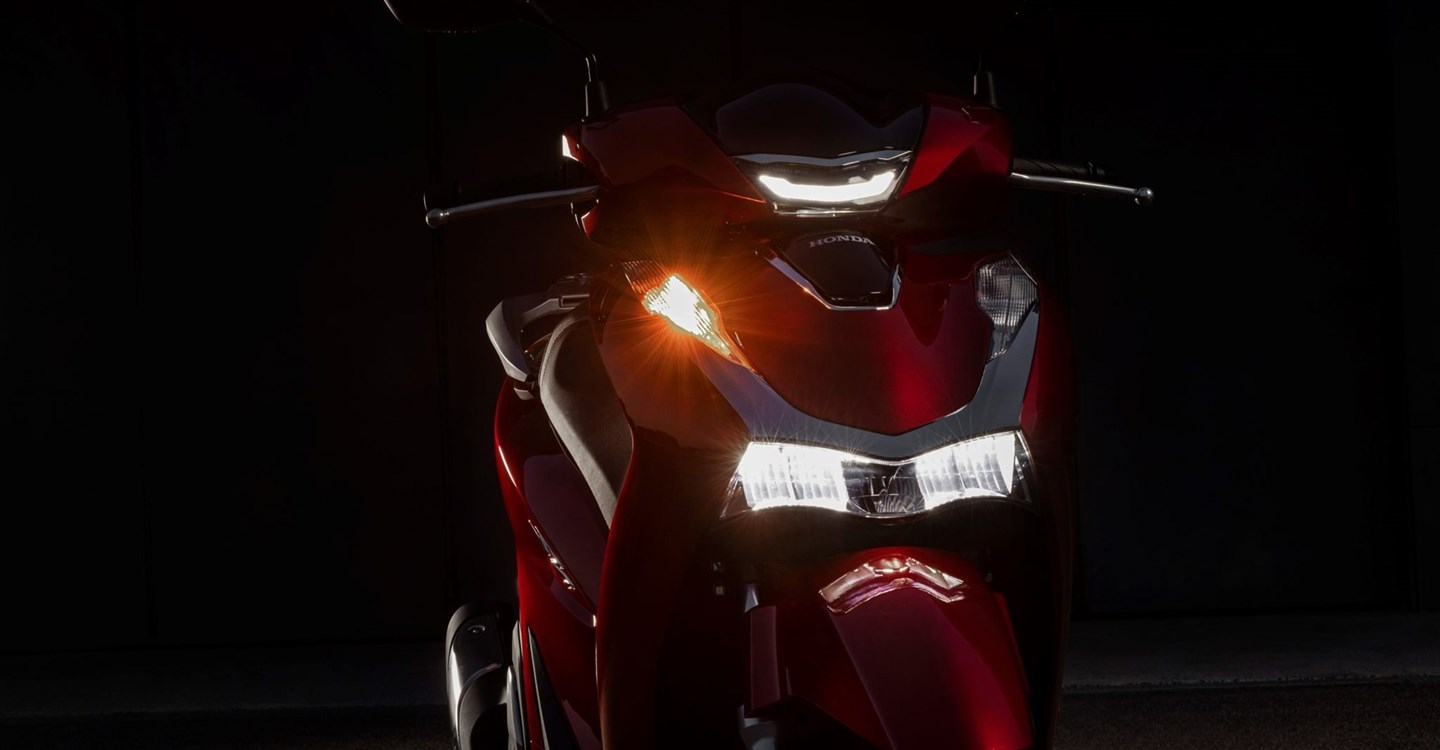

LED-Headlights

All information is supplied without guarantee. Errors and clerical errors reserved.
