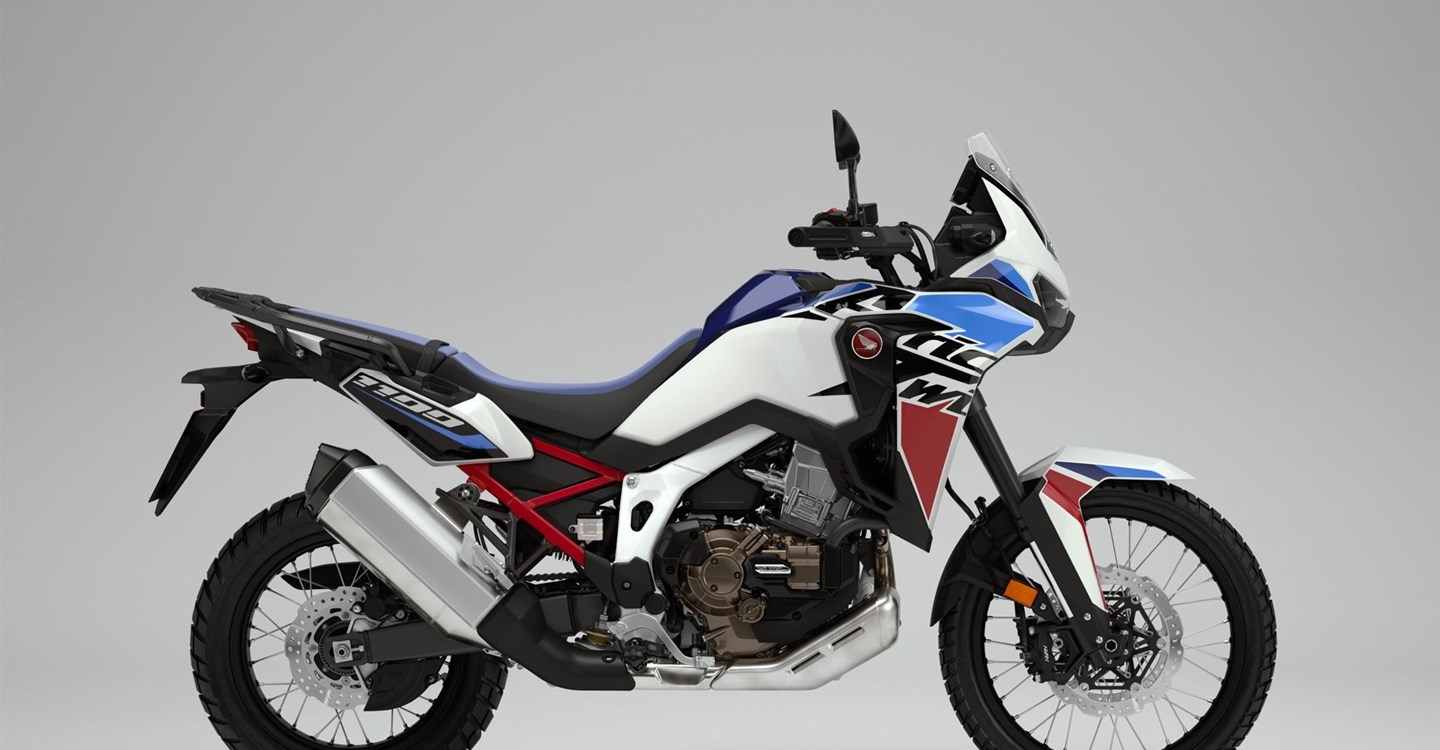

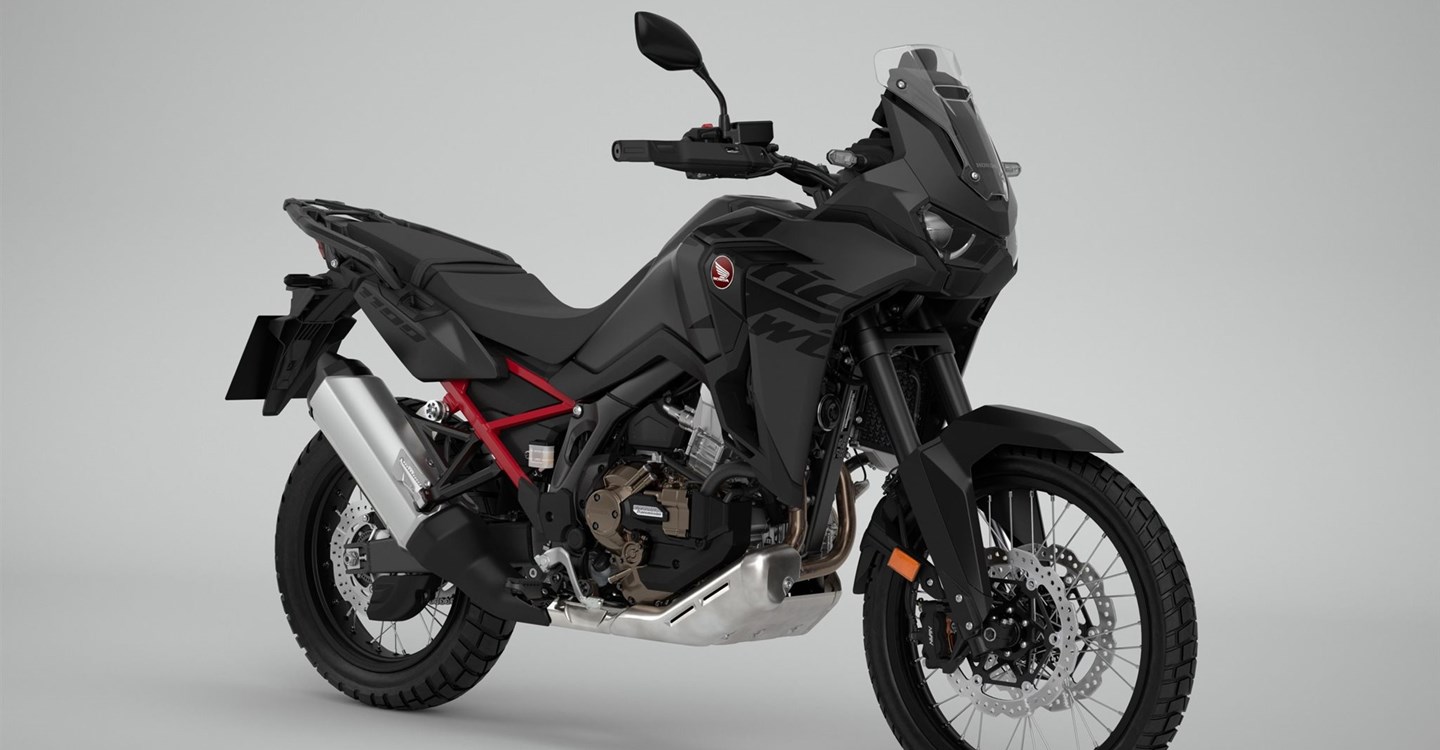

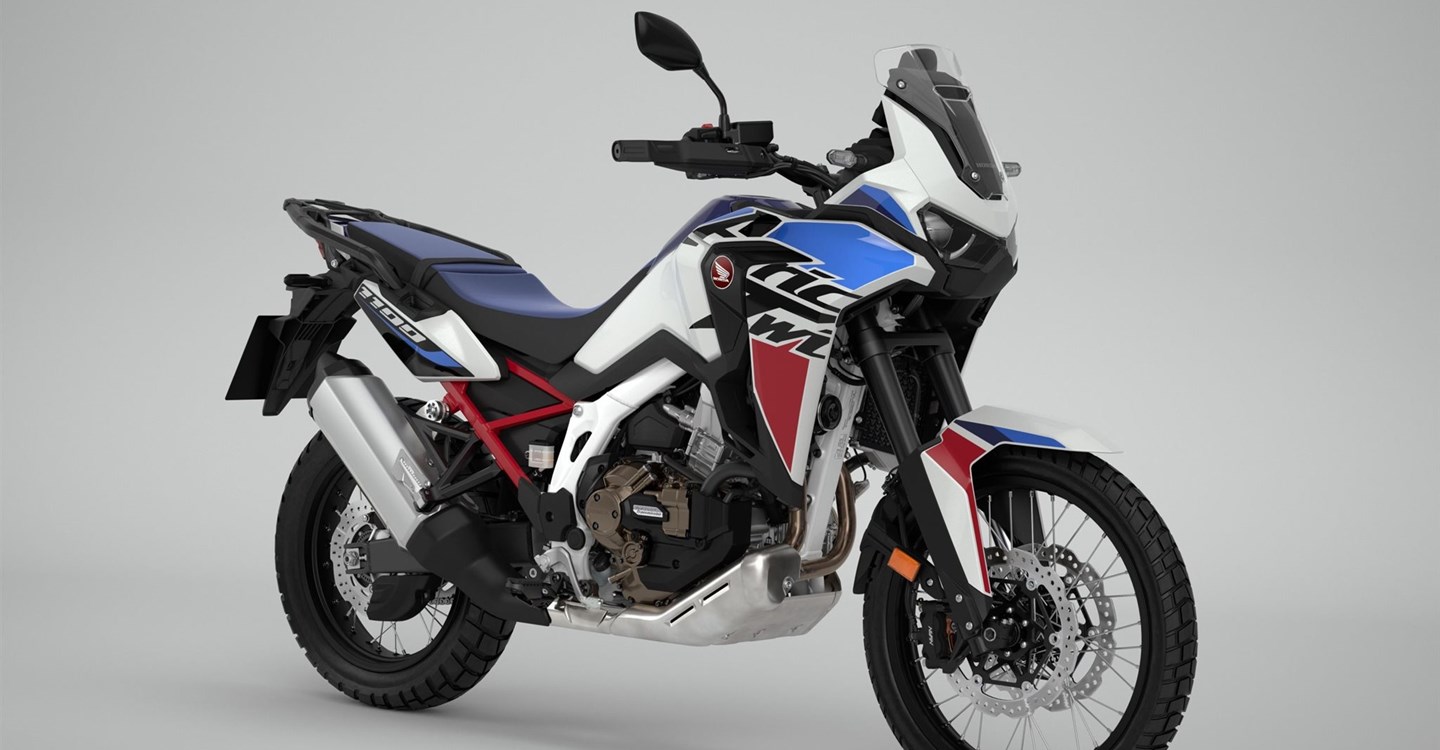

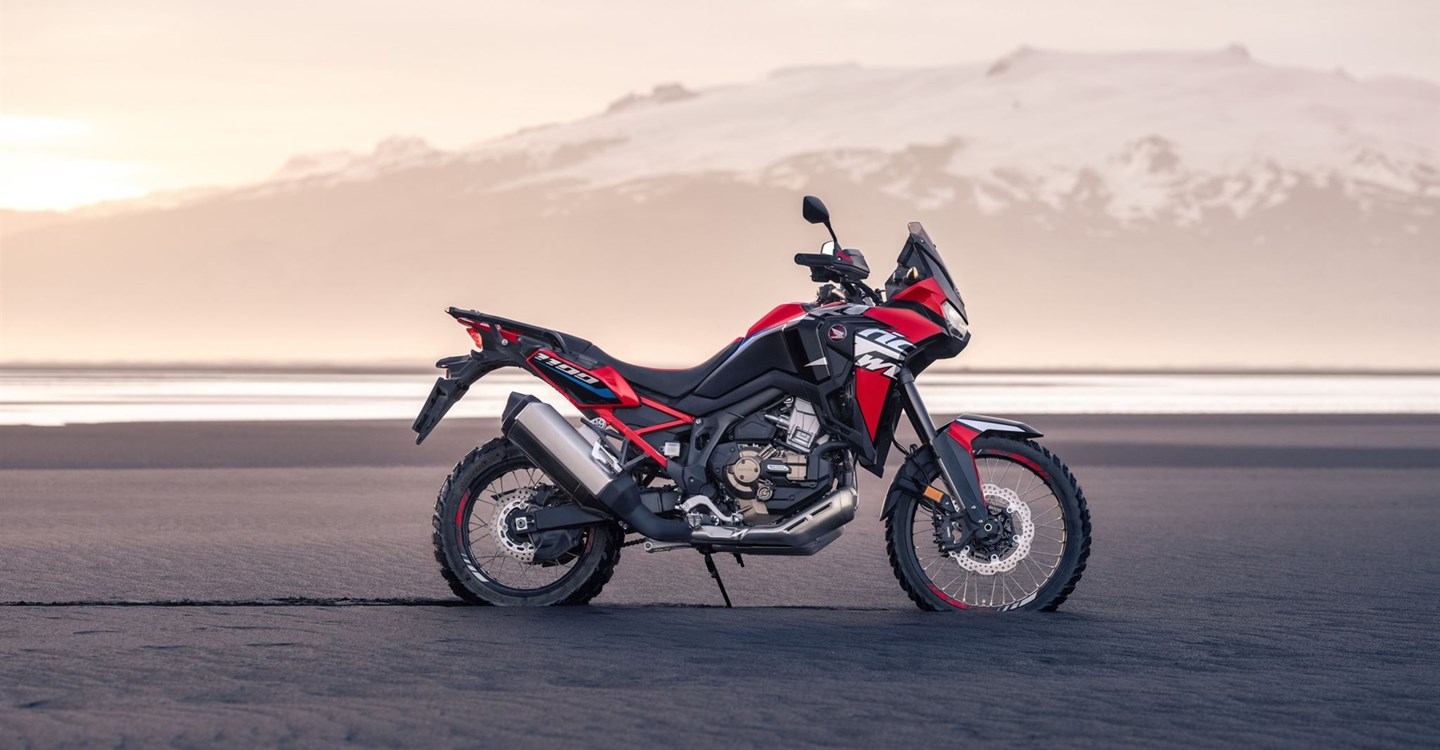

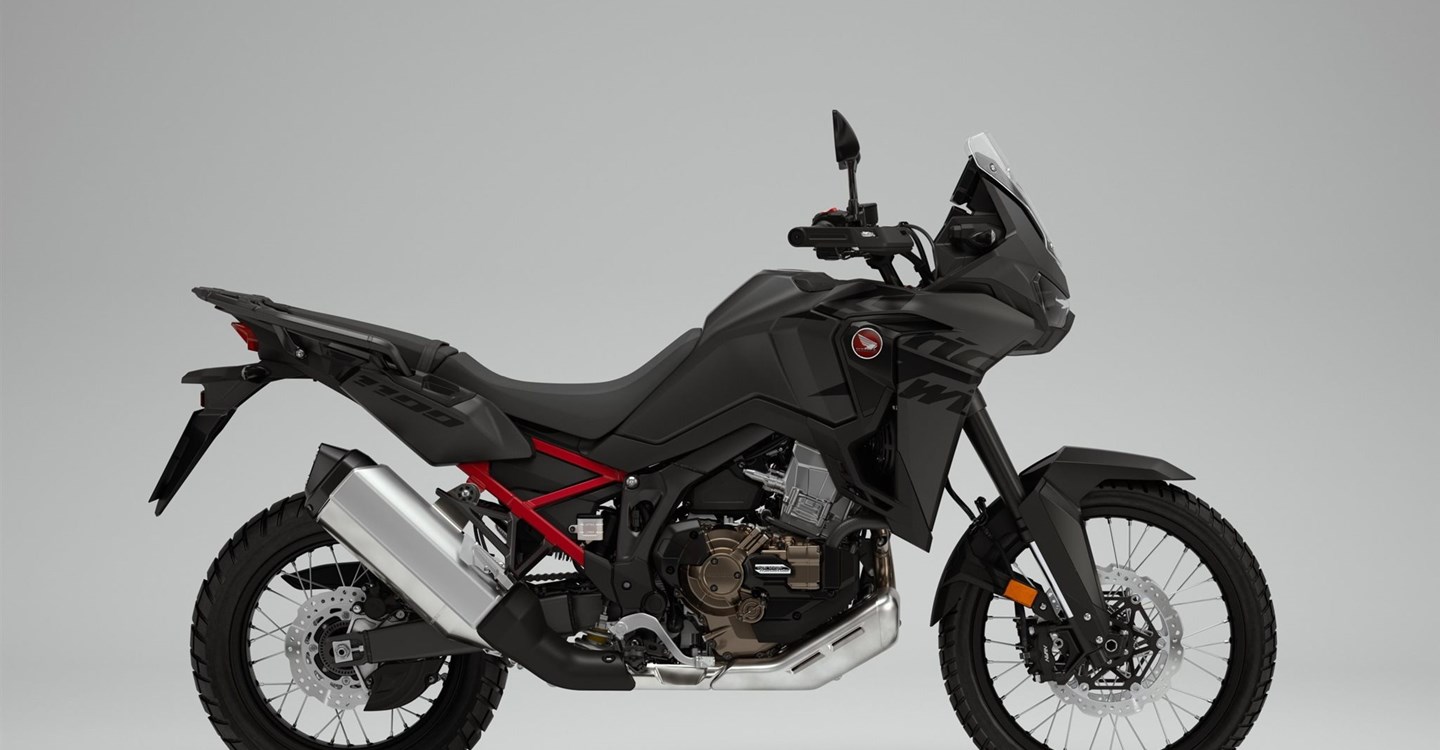

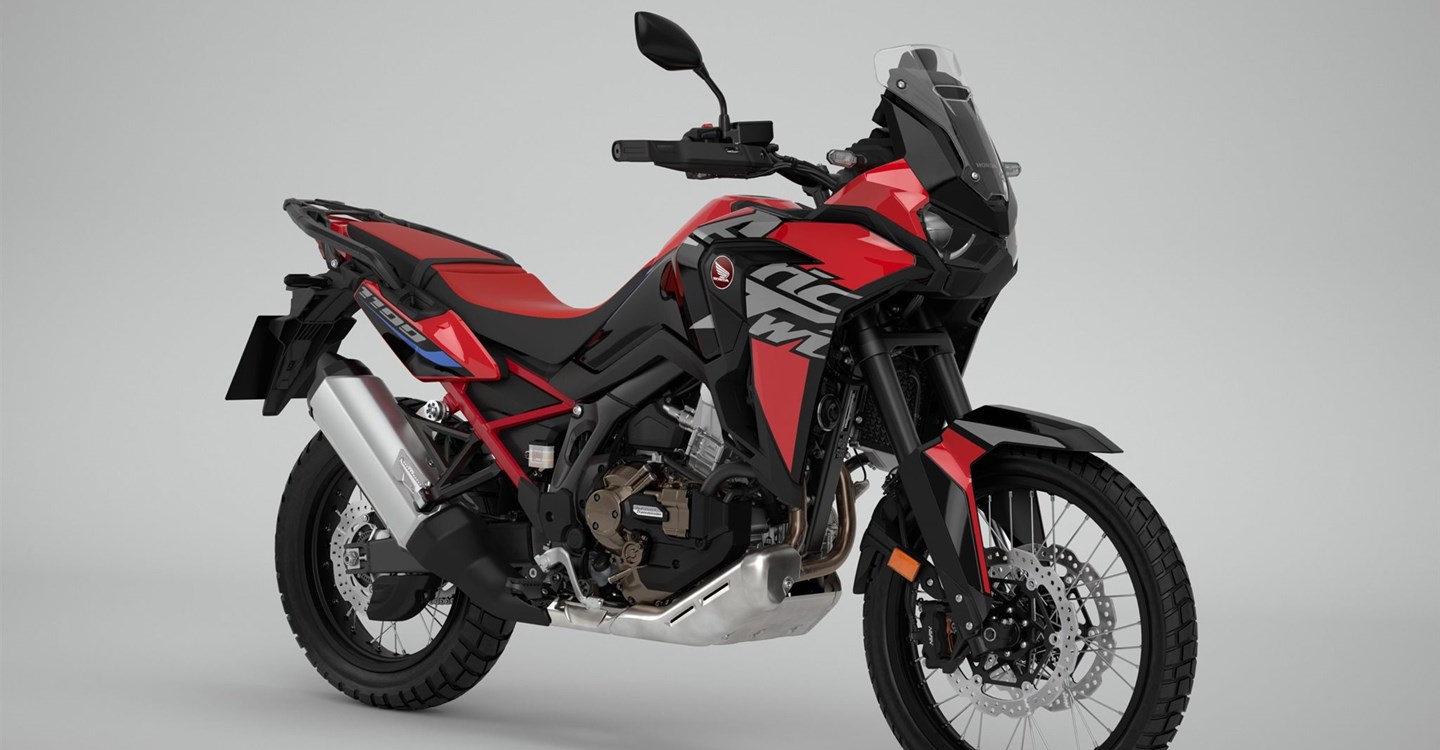

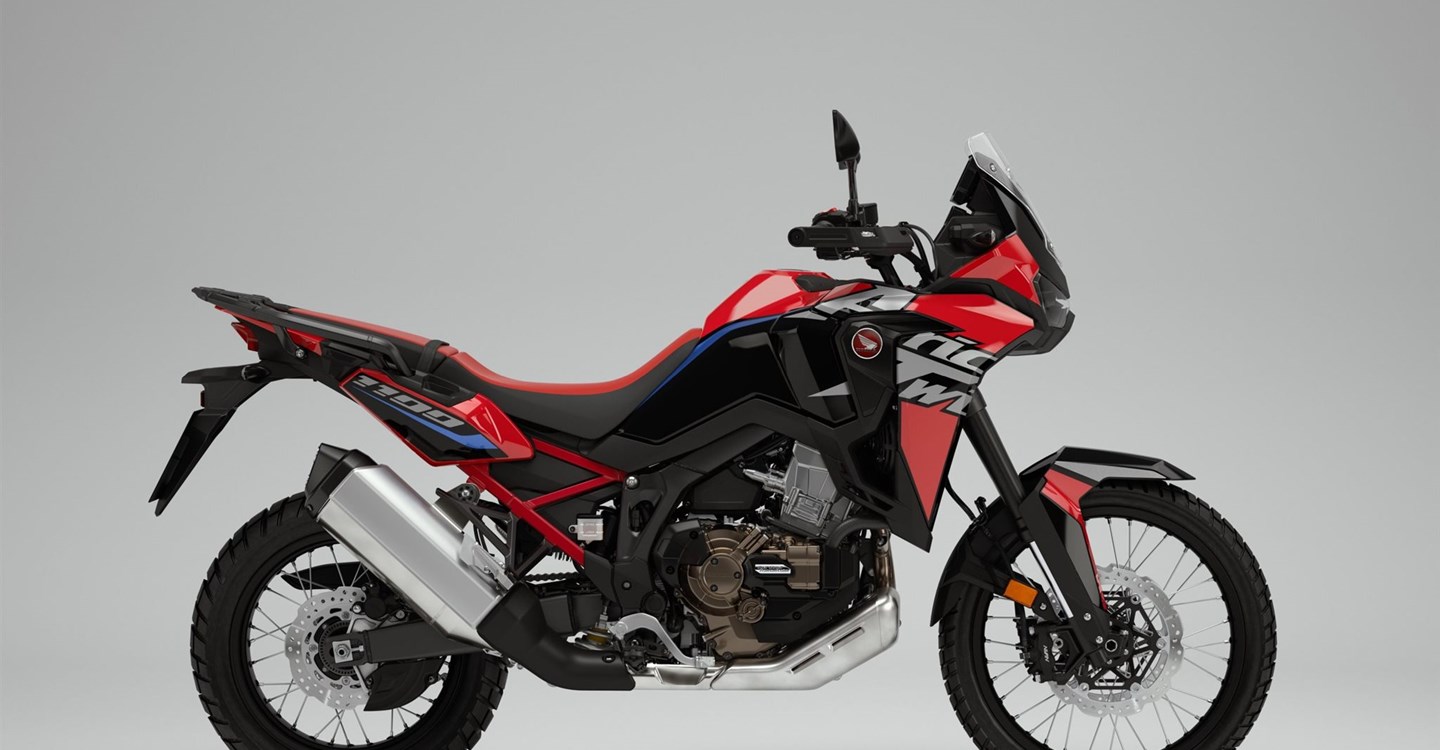

Honda CRF1100L Africa Twin DCT

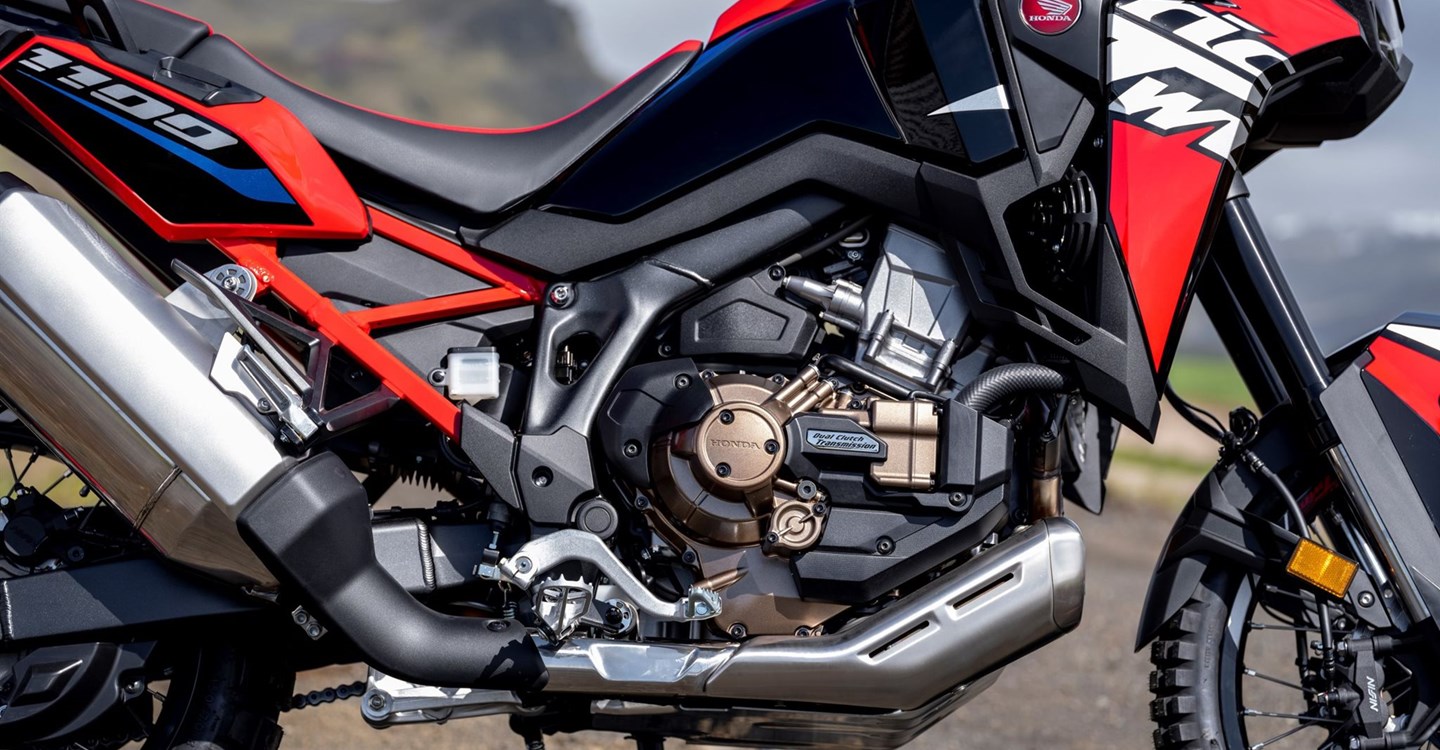

ENGINE AND DRIVE TRAIN
Engine type
In line
Degrees
0
Cylinders
2
Strokes
4-Stroke
Valves per cylinder
4
Valves
OHC

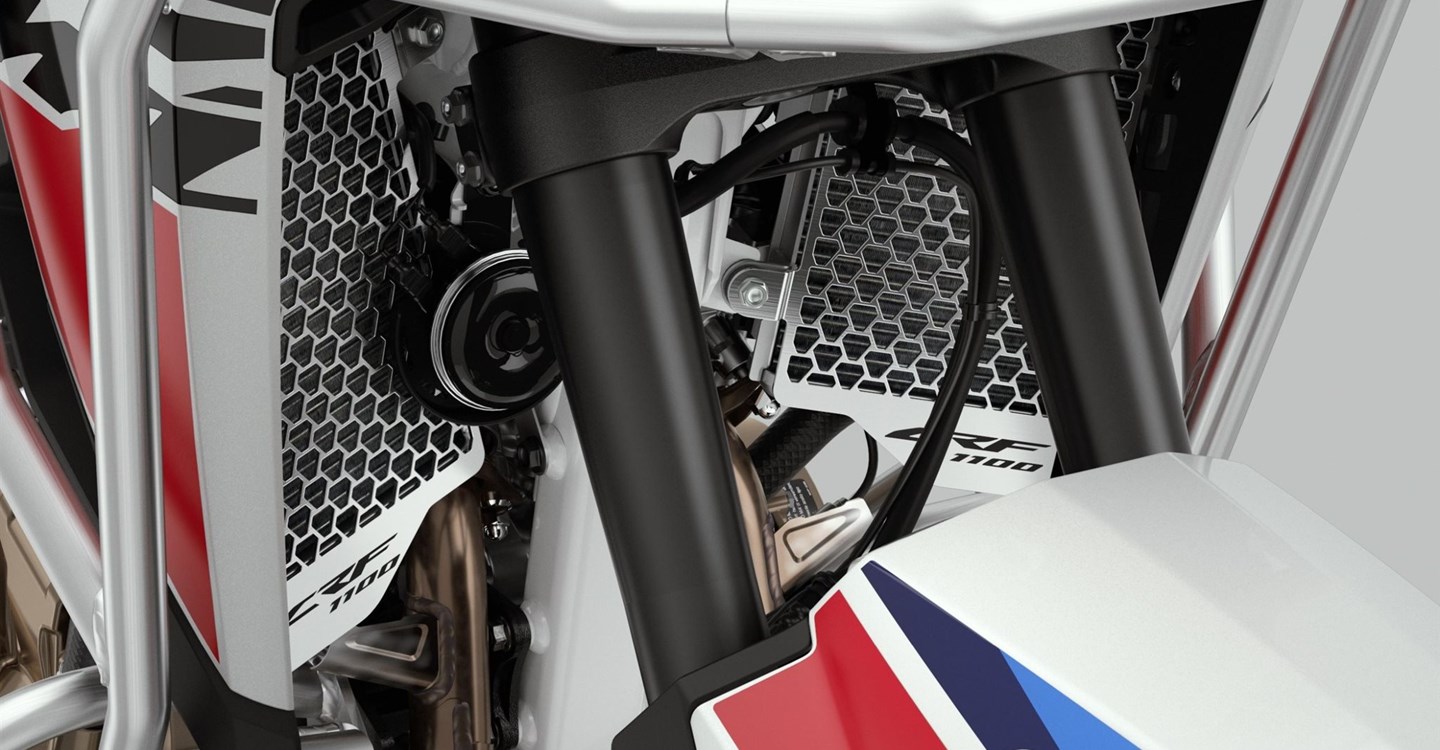

Cooling
liquid
Displacement
1084 ccm
Bore
92 mm
Stroke
81.5 mm
Max. Power Output
102 HP
Rpm at Max. Power Output
7500 rpm
Max. Torque
105 Nm
Rpm at Max. Torque
6250 rpm
Compression Ratio
10.1
Fuel system
Injection
Starter
Electric
Clutch Type
Multiplate in oil-bath
Ignition
Transistor
Final Drive
Chain
Transmission Type
Dual-clutch
Number of gears
6
Available for A2 license
yes
CHASSIS
Frame
Steel
Frame type
Double cradle
Steering axis angle
62.5 degree
Trail
113 mm
SUSPENSION FRONT
Front suspension
Upside-Down telescopic fork
Brand
Showa
Diameter
45 mm
Travel
230 mm
Adjustment
Compression, Preload, Rebound
SUSPENSION REAR
Rear suspension
Swing arm
Material
Aluminium
Shock absorber
Monoshock
Strut
Pro-Link
Brand
Showa
Travel
220 mm
Adjustment
Compression, Preload, Rebound

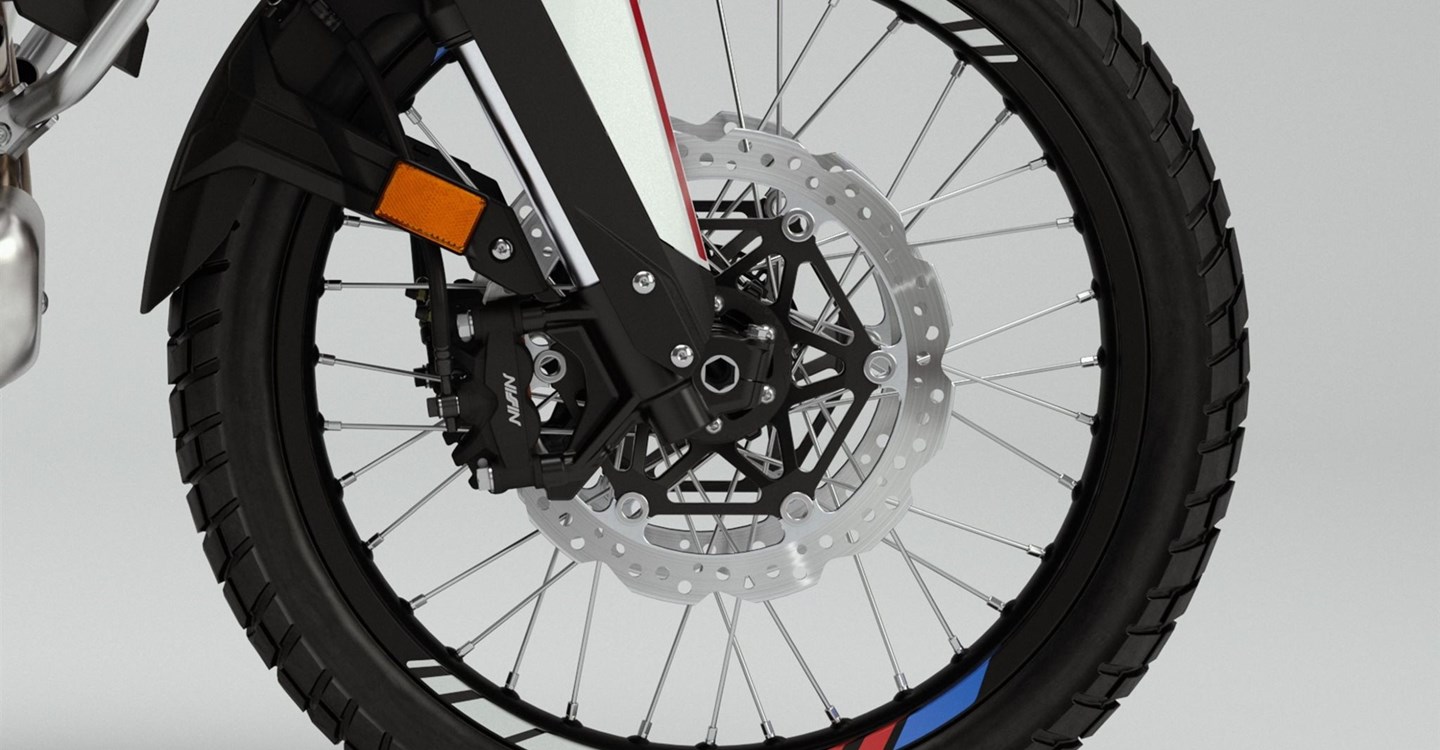

BRAKES FRONT
Front brake
Double disk
Diameter
310 mm
Piston
Four pistons
Actuation
Hydraulic
Technology
radial, Wave

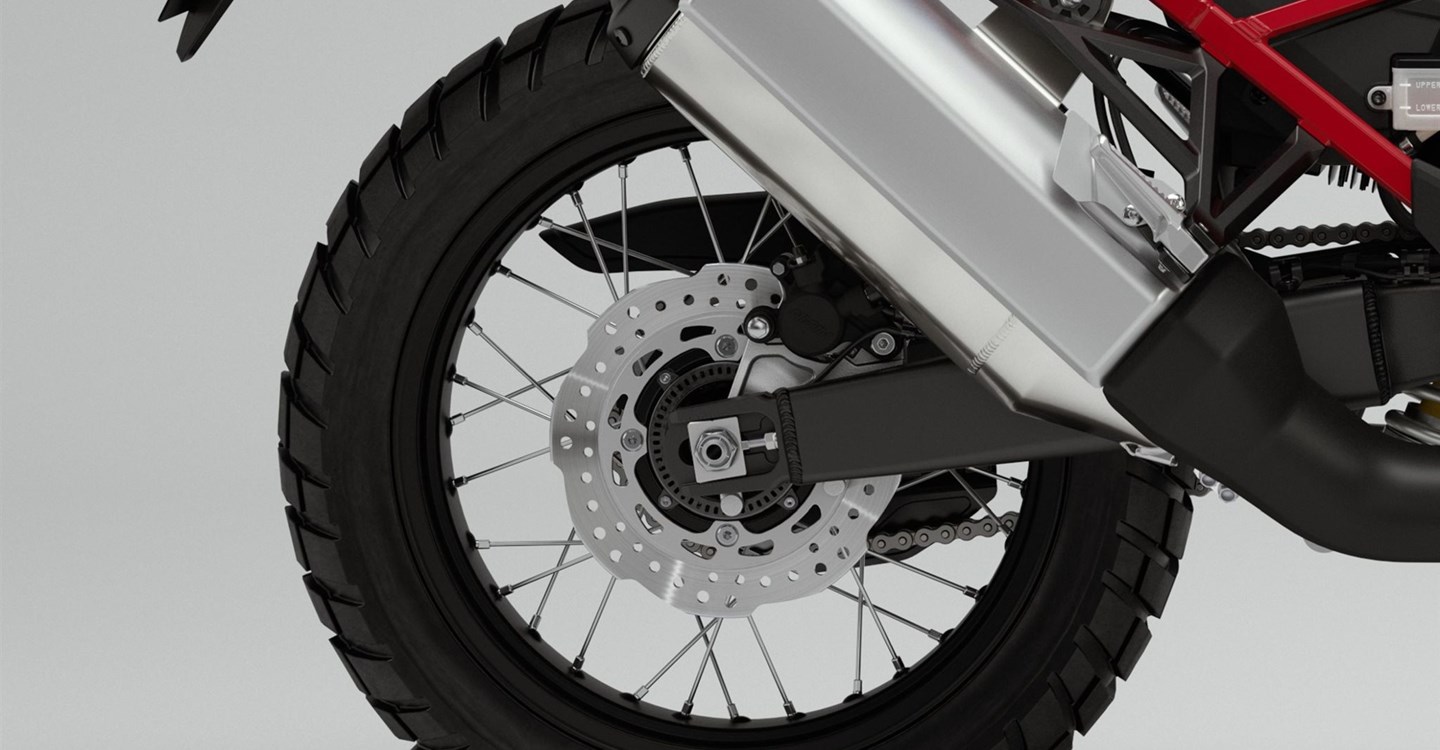

BRAKES REAR
Rear brake
Disc
Diameter
256 mm
Piston
Single piston
ASSISTANCE SYSTEMS
Assistance systems
ABS, Riding modes, Ride by Wire, Traction control, Anti-wheelie
DIMENSIONS AND WEIGHTS
Front tyre width
90 mm
Front tyre height
90 %
Front tyre diameter
21 inch
Rear tyre width
150 mm
Rear tyre height
70 %
Rear tyre diameter
18 inch
Length
2330 mm
Width
960 mm
Height
1395 mm
Wheelbase
1574 mm
Seat Height from
850 mm
Seat Height to
870 mm
Kerb Weight (with ABS)
236 kg
Fuel Tank Capacity
18.8 l
License
A
EQUIPMENT
Equipment
LED-Headlights

All information is supplied without guarantee. Errors and clerical errors reserved.
