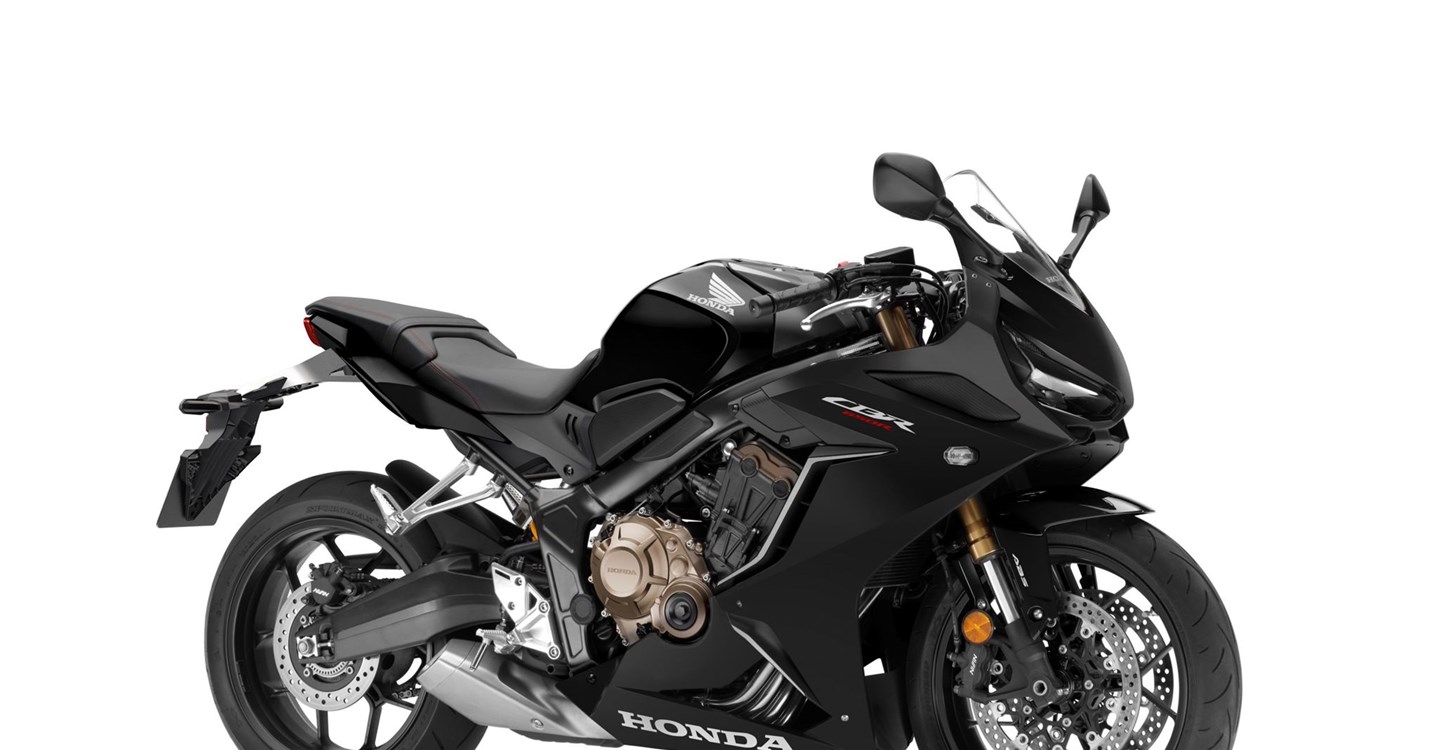

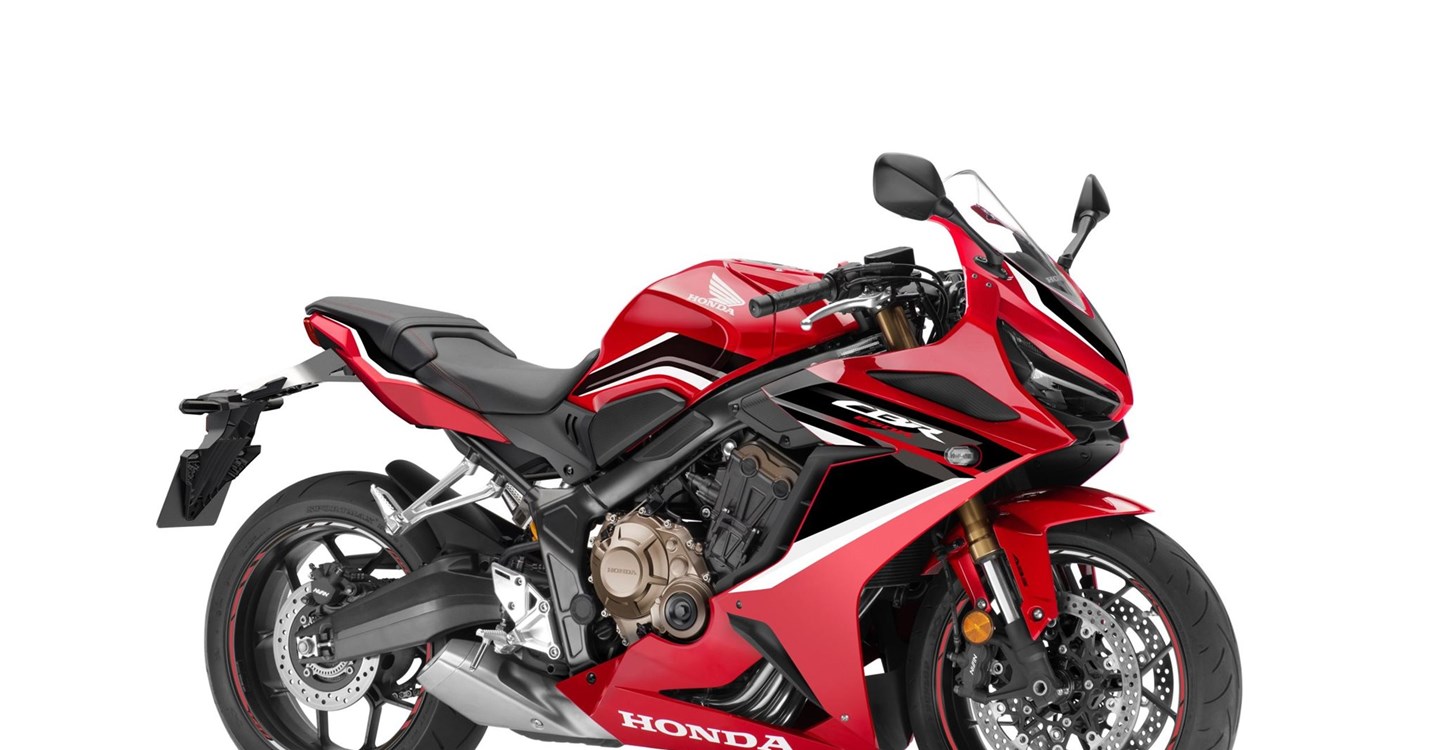

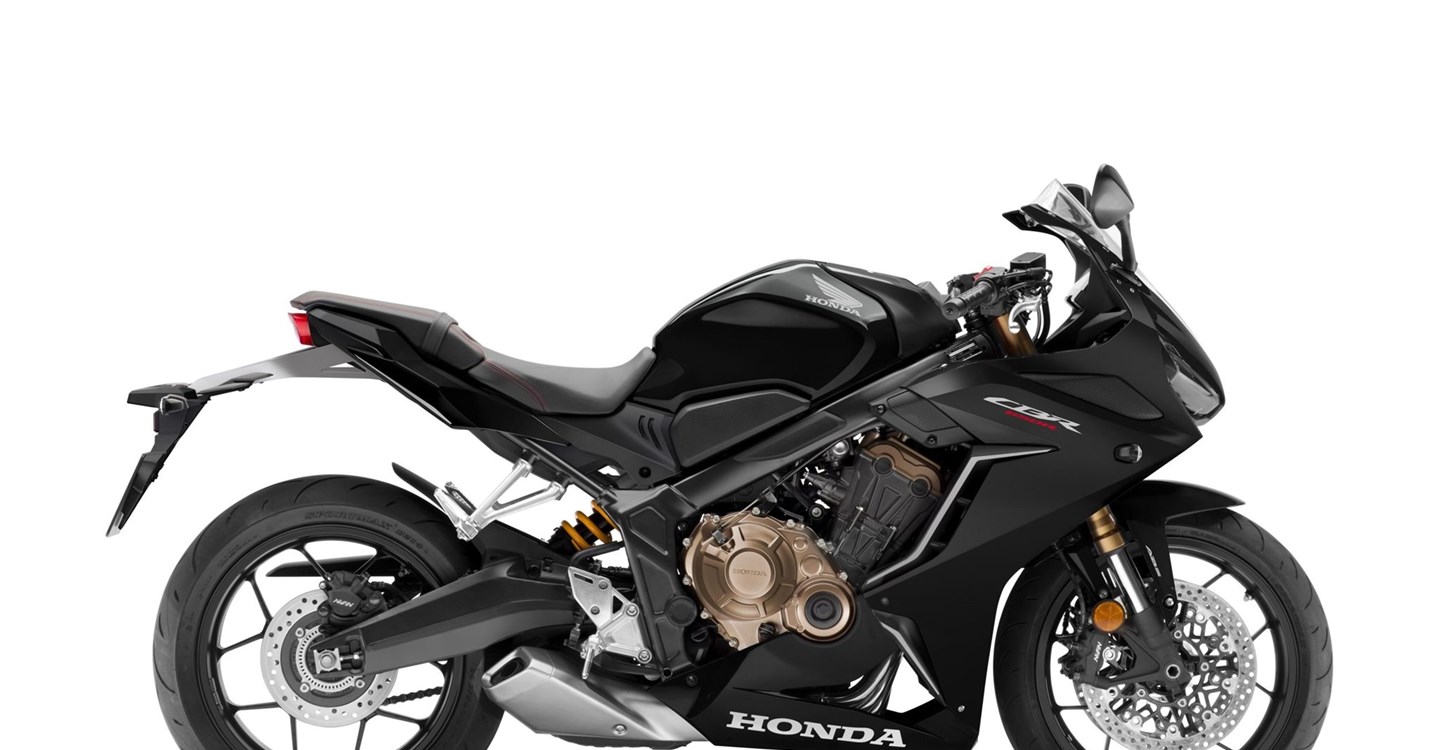

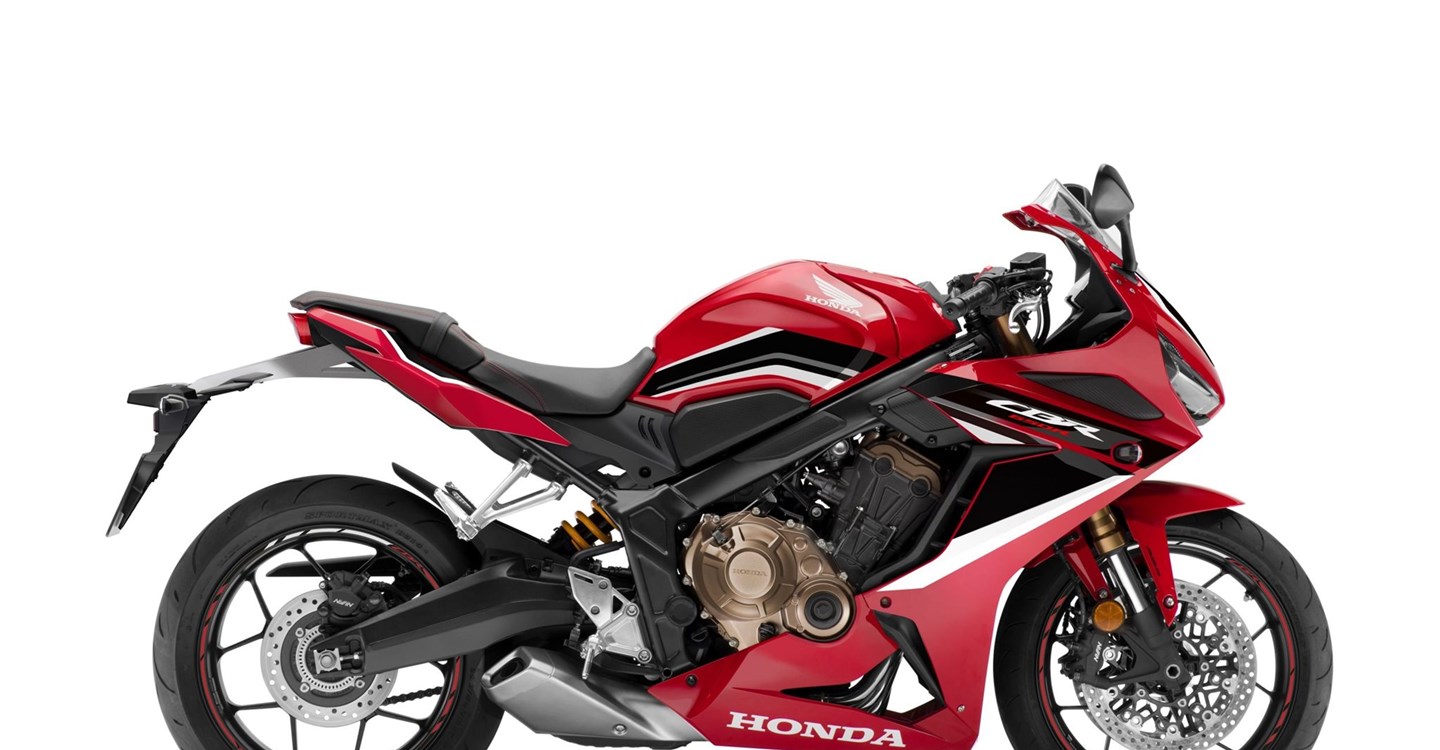

Honda CBR650R

ENGINE AND DRIVE TRAIN
Engine type
In line
Cylinders
4
Strokes
4-Stroke
Valves per cylinder
4
Valves
DOHC
Cooling
liquid
Displacement
649 ccm
Bore
67 mm
Stroke
46 mm
Max. Power Output
95 HP
Rpm at Max. Power Output
12000 rpm
Max. Torque
63 Nm
Rpm at Max. Torque
8500 rpm
Compression Ratio
11.6
Fuel system
Injection
Starter
Electric
Clutch Type
Multiplate in oil-bath
Ignition
Digital, Transistor
Final Drive
Chain
Transmission Type
Gearshift
Number of gears
6
CHASSIS
Frame
Steel
Frame type
Twin Tube
Steering axis angle
64.5 degree
Trail
101 mm
SUSPENSION FRONT
Front suspension
Upside-Down telescopic fork
Technology
Big Piston
Brand
Showa
Diameter
41 mm
Travel
120 mm
SUSPENSION REAR
Rear suspension
Swing arm
Material
Aluminium
Shock absorber
Monoshock
Adjustment
Preload
BRAKES FRONT
Front brake
Double disk
Diameter
310 mm
Piston
Four pistons
Technology
radial
BRAKES REAR
Rear brake
Disc
Diameter
240 mm
Piston
Single piston
ASSISTANCE SYSTEMS
Assistance systems
ABS
DIMENSIONS AND WEIGHTS
Front tyre width
120 mm
Front tyre height
70 %
Front tyre diameter
17 inch
Rear tyre width
180 mm
Rear tyre height
55 %
Rear tyre diameter
17 inch
Length
2120 mm
Width
750 mm
Height
1150 mm
Wheelbase
1450 mm
Seat Height from
810 mm
Kerb Weight (with ABS)
208 kg
Fuel Tank Capacity
15.4 l
License
A

All information is supplied without guarantee. Errors and clerical errors reserved.
