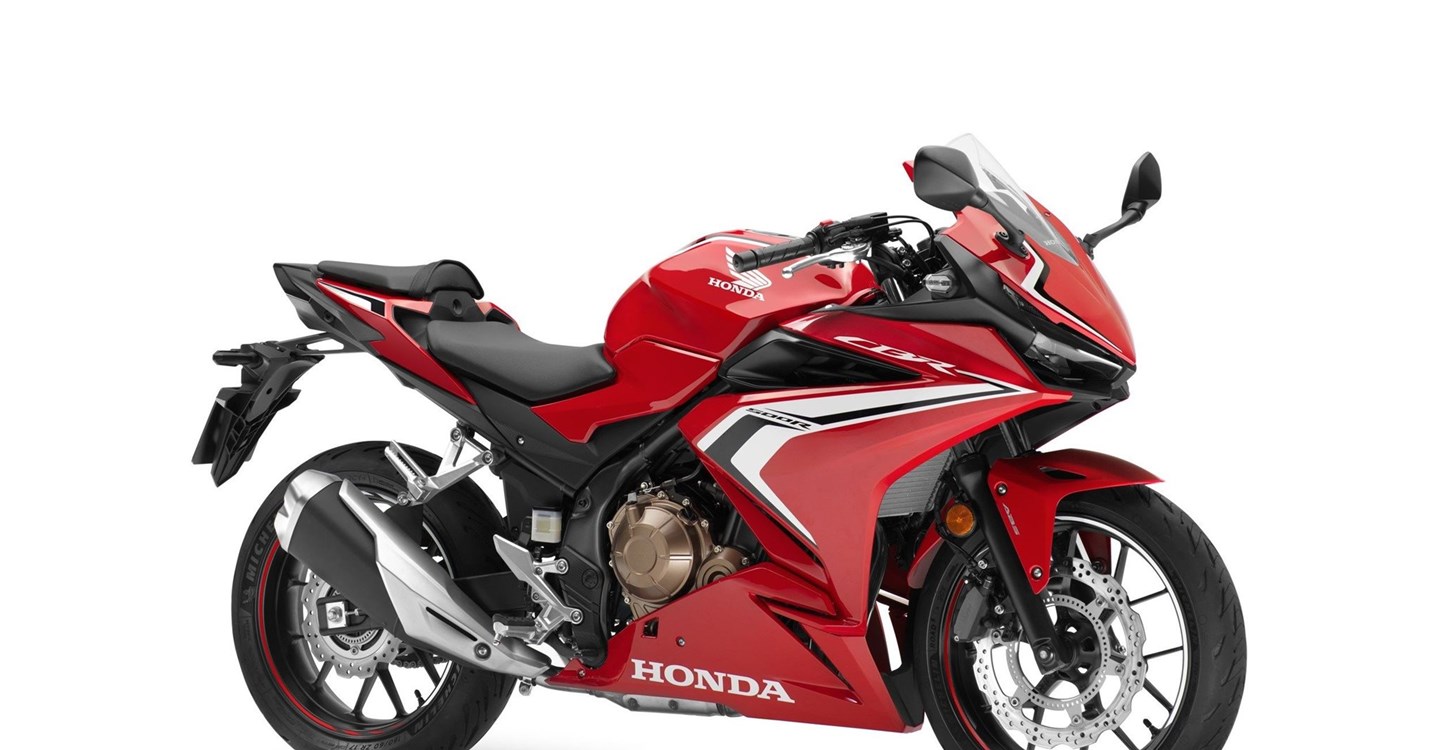

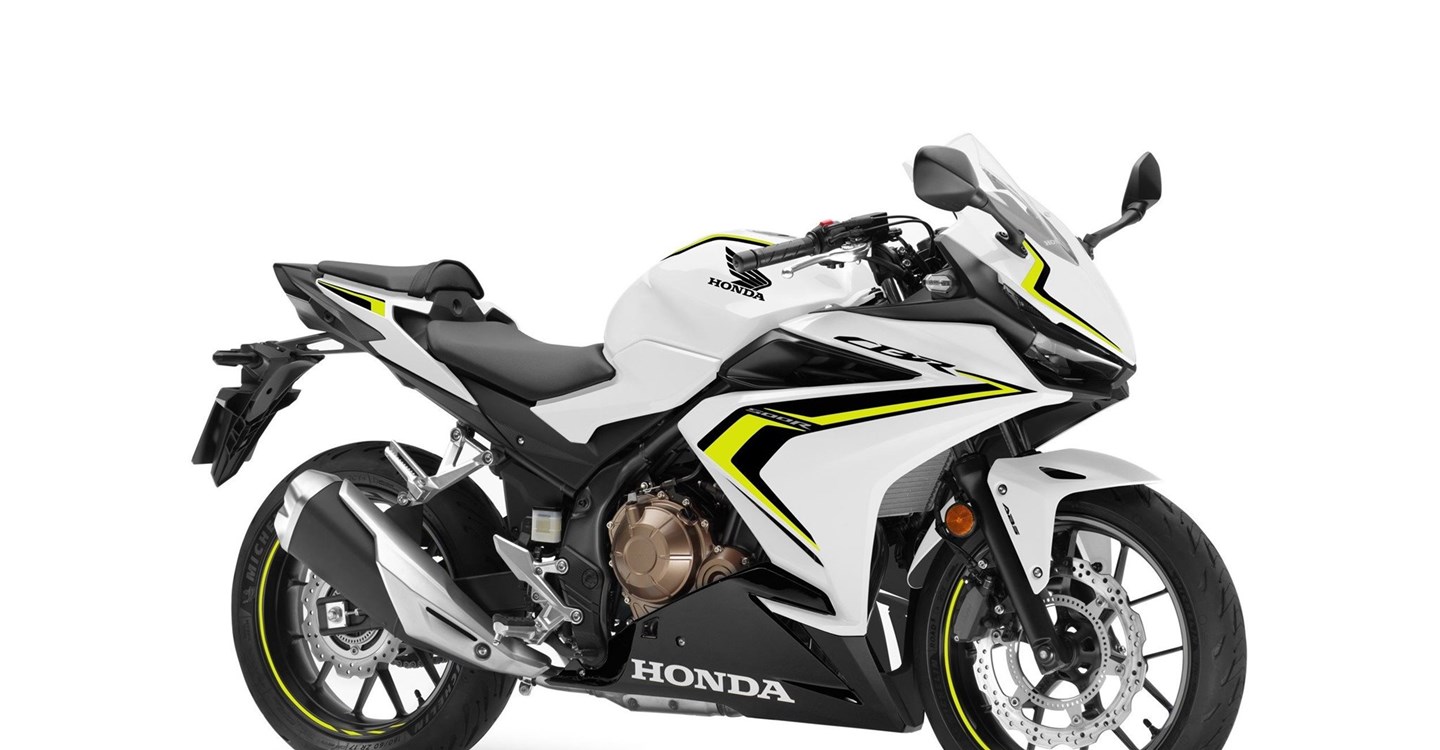

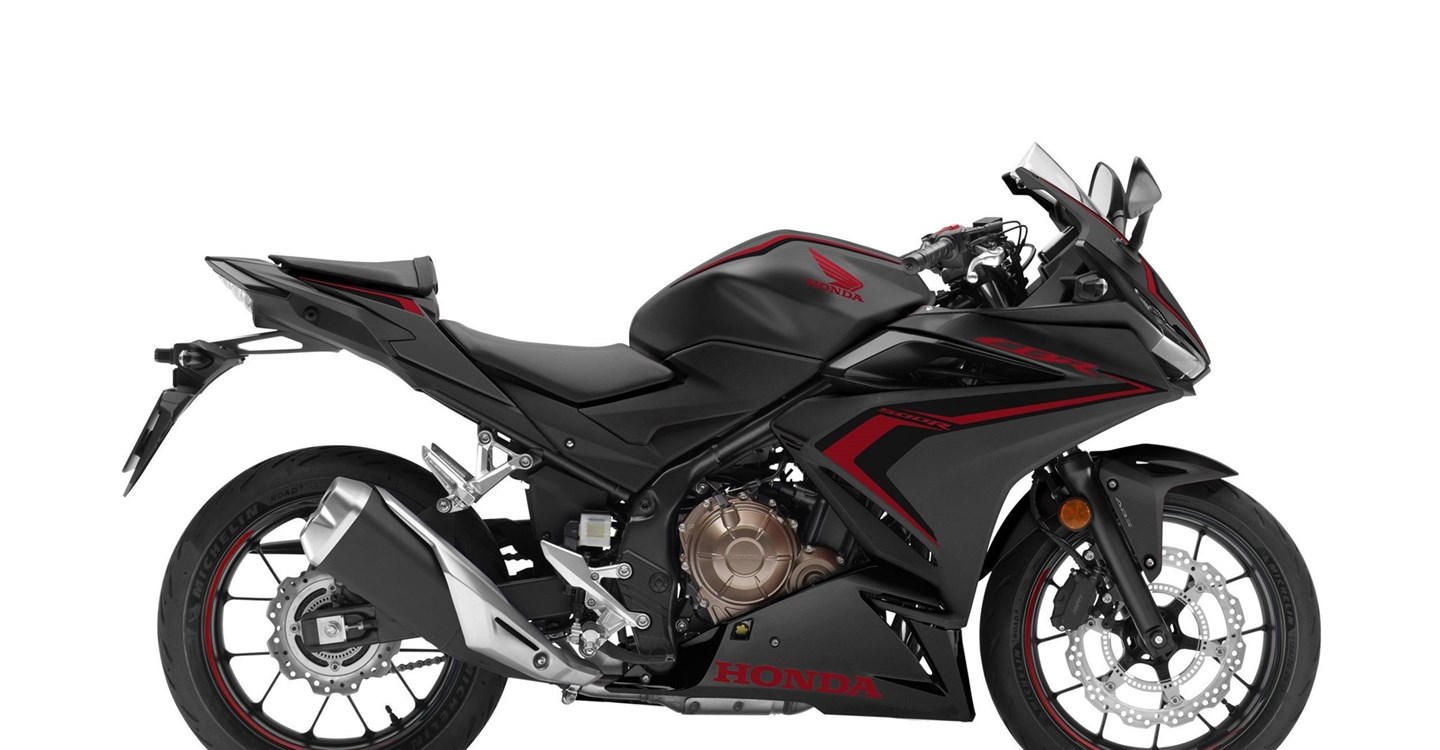

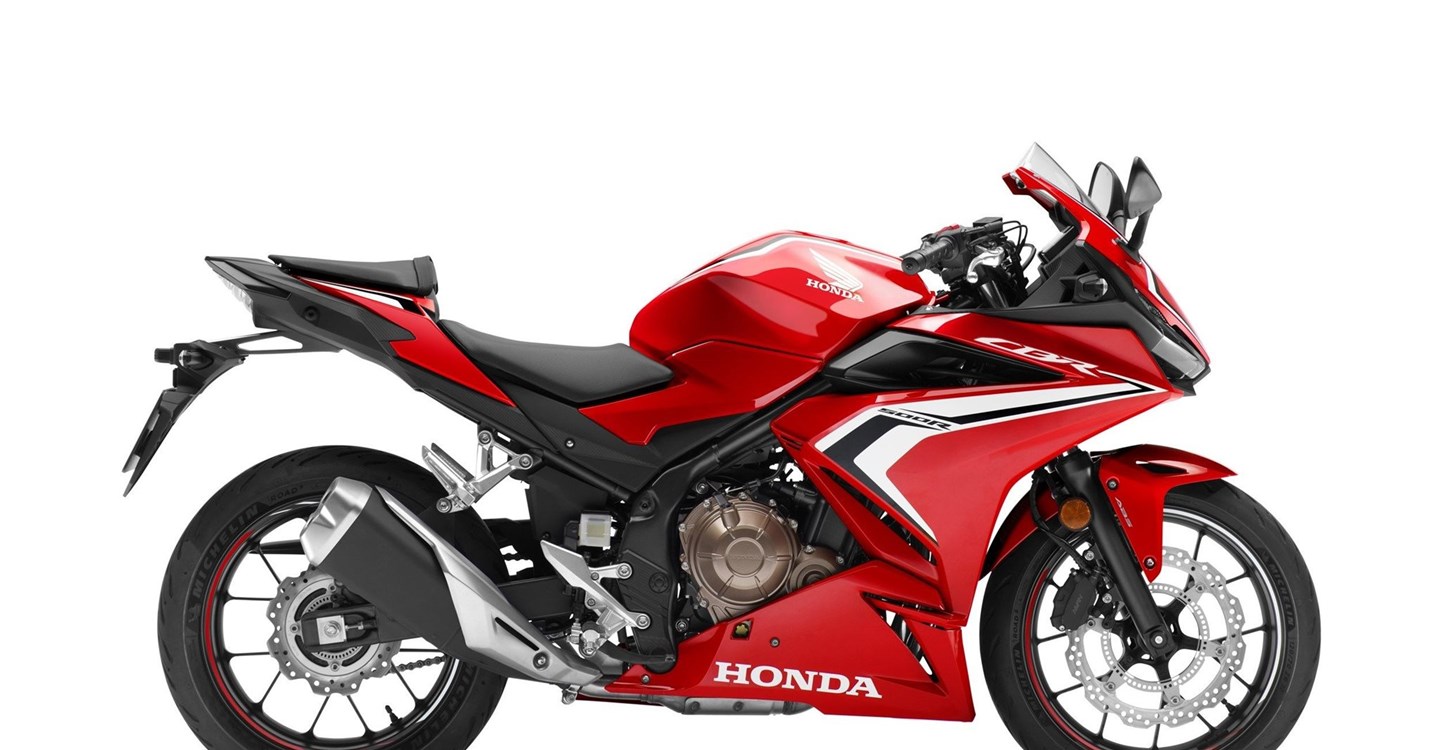

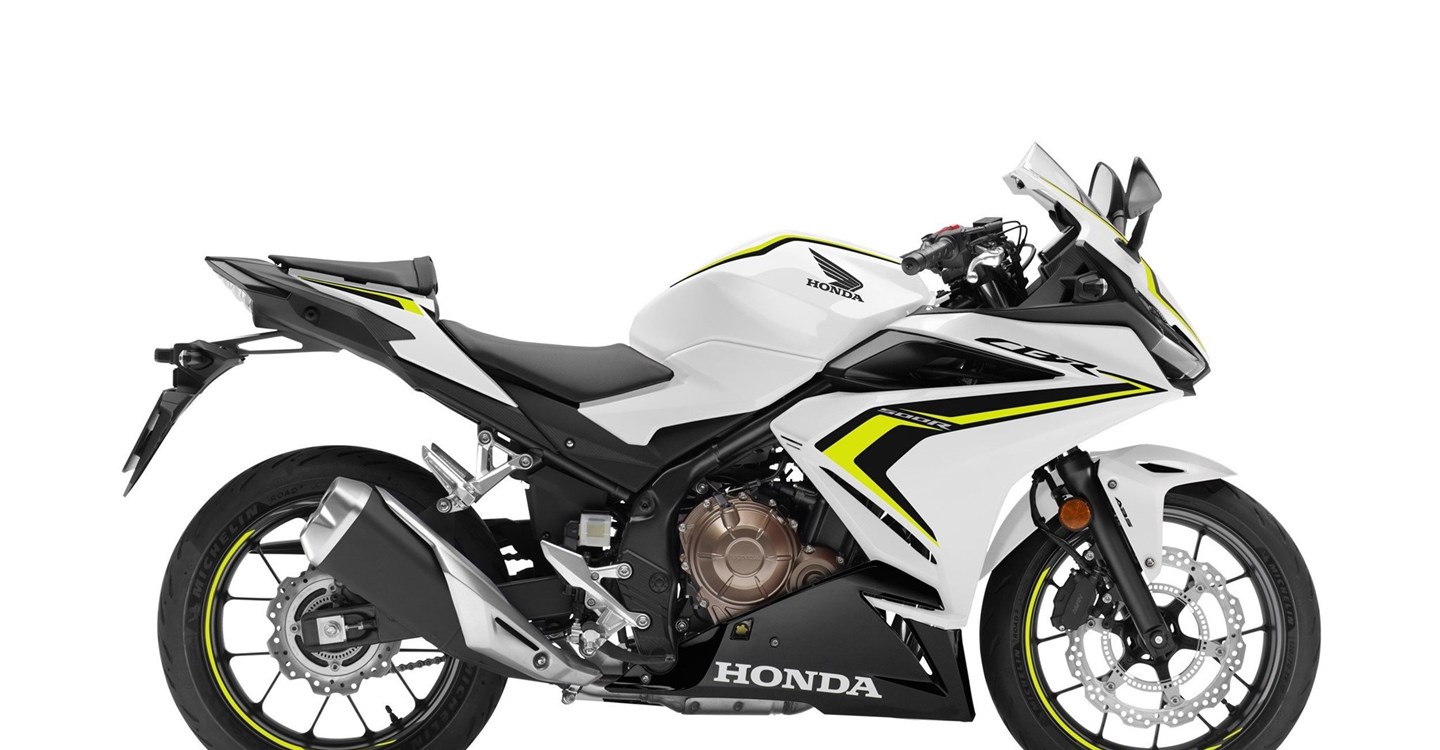

Honda CBR500R

Engine and Drive Train
Engine type
In line
Cylinders
2
Strokes
4-Stroke
Valves per cylinder
4
Valves
DOHC
Cooling
liquid
Displacement
471 ccm
Bore
67 mm
Stroke
66.8 mm
Max. Power Output
48 HP
Rpm at Max. Power Output
5500 rpm
Max. Torque
43 Nm
Rpm at Max. Torque
7000 rpm
Compression Ratio
10.7
Starter
Electric
Clutch Type
Multiplate in oil-bath
Ignition
Digital, Transistor
Final Drive
Chain
Chassis
Frame
Steel
Brakes Front
Front brake
Single disk
Piston
Double piston
Brakes Rear
Rear brake
Disc
Piston
Single piston
Dimensions and Weights
Front tyre width
120 mm
Front tyre height
70 %
Front tyre diameter
17 inch
Rear tyre width
160 mm
Rear tyre height
60 %
Rear tyre diameter
17 inch
Length
2075 mm
Width
740 mm
Height
1145 mm
Wheelbase
1410 mm
Seat Height from
790 mm
Kerb Weight (with ABS)
194 kg
Fuel Tank Capacity
15.7 l
License
A2
Range
448 km
combined CO2 emissions
80 g/km
Combined fuel consumption
3.5 l/100km

All information is supplied without guarantee. Errors and clerical errors reserved.
